postheadericon How to Order Numbering Heads

Printer Friendly Quote

Columbia Marking Tools manufactures quality numbering heads for non-automatic, automatic, and remote select numbering.

CMT offers a range of different numbering head models. However, each numbering head is manufactured for your specific marking application:

  • Serial numbers
  • Date codes
  • Tag markers
  • QC marks
  • Part numbers
  • Lot numbers
  • Random numbers

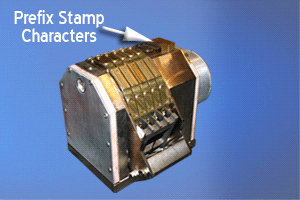

Overall view of numbering head and parts

page divider


Information to Have When Ordering

  • Character size
  • Characters to be engraved (legend layout)
  • Required spacing
  • Number of wheels/Number of characters
  • Prefix or suffix
  • Material to be marked
  • How many automatic/manual/remote select positions
  • Drawing or sketch of typical reading
  • Shank dimensions/production requirements

page divider


How to Order Chart for Straight Style Numbering Heads

Machine
Shank Style
Standard Press
1" dia. x 2" lg
CMT 914
1" dia. x 3/8" lg
CMT860
Dovetail Adapter
CMT751
Rod Style "K" Mount
Special
Designed to Suit

page divider

How to Order Chart for Roll Marking Numbering Heads

Item Number
Sharft Dia.
Shank Width
Machines
DCA-75NHA
3/4"
3/4"

260
660
860

DCC-100NHA
1"
1"
DCC-125NHA
1"
1 1/4"
CA-75-NHA
3/4"
3/4"
400 Series
CC-100NHA
1"
1"
CC-125NHA
1"
1 1/4"
