CM9X 1/2" Round Insert Stamps

CM9X Round Inserts

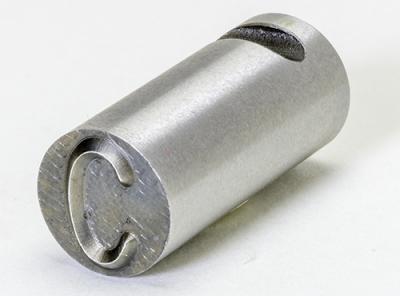

The CM9X round insert are the most widely used inserts of the CMT product liner. These 1/2" diameter inserts are made in the USA from qulity tool steel.

The CM9X – round inserts are used for indention marking and are held in the stamp recess/holder with spring clip or set screw. Round inserts are frequently used to provide station ID and part tracking QC marks. Round inserts always center the mark in the tool holder.

CM Round Insert Made in USA
CM Round Insert Made in USA
CM Round Insert Made in USA

Columbia Marking Tools CM9 1/2" Round Inserts

Comprehensive guide for round inserts.

Technical Data Sheet

CM9X-Thumb
CM9X00 1/2" Blank Round Insert
$9.11 $8.20 Online Sale!
CM9X00

CM9X00 Blank Spacer 1/2" [12.7mm] round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet


Quantity
CM9X-Thumb
CM9X13C2 1/8-inch 2-Character 1/2" Round Insert
$44.10 $39.69 Online Sale!
CM9X13C2

CM9X13C2 1/8" [3.2mm] 2-Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric characters required when ordering.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Select the letters or numbers you want:
Quantity
CM9X-Thumb
CM9X13 1/8-inch Character 1/2" Round Insert
$10.45 $9.41 Online Sale!
CM9X13

CM9X13 1/8" [3.2mm] Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric character required when ordering.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size


Quantity
CM9X-Thumb
CM9X13C3 1/8-inch 3-Character 1/2" Round Insert
$55.13 $49.61 Online Sale!
CM9X13C3

CM9X13C3 1/8" [3.2mm] 3-Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric characters required when ordering.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Please select the 3 alpha-numeric characters needed for your insert
Quantity
CM9X-Thumb
CM9X13SL### 1/8-inch 1.50" Special Length 1/2"" Round Insert
$27.57 $24.81 Online Sale!
CM9X13SL###
CM9X13SL150X - 1/8-inch Character, 1.50-inch Special Length insert where "X" can be replaced with any letter or number

Please select a special length, and a reading of either number or letter for the character:
Quantity
CM9X-Thumb
CM9X19 3/16-inch Character 1/2" Round Insert
$11.77 $10.59 Online Sale!
CM9X19

CM9X19 3/16" [4.8mm] Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric character required when ordering.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Please select a number or letter for the character:
Quantity
CM9X-Thumb
CM9X19C2 3/16-inch 2-Character 1/2" Round Insert
$44.10 $39.69 Online Sale!
CM9X19C2

CM9X19C2 3/16" [4.8mm] 2-Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric characters required when ordering.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Select the letters or numbers you want:
Quantity
CM9X-Thumb
CM9X19DOT 3/16-inch Dot-Style 1/2" Round Insert
$27.57 $24.81 Online Sale!
CM9X19DOT

CM9X19DOT 3/16" [4.8mm] Dot Style Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric character required when ordering.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Dot Style Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Select the letter or number you want:
Quantity
CM9X-Thumb
CM9X19SYM 3/16-inch Symbol 1/2" Round Insert
$22.05 $19.85 Online Sale!
CM9X19SYM

CM9X19SYM 3/16" [4.8mm] Symbol round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the symbol number required when ordering.

Symbol List

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Please select a symbol number
Quantity
CM9X-Thumb
CM9X25 1/4-inch Character 1/2" Round Insert
$13.20 $11.31 Online Sale!
CM9X25

CM9X25 1/4" [6.3mm] Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric character required when ordering.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Please select a number or letter for the character:
Quantity
CM9X-Thumb
CM9X25C2 1/4-inch 2-Character 1/2" Round Insert
$44.10 $39.69 Online Sale!
CM9X25C2

CM9X25C2 1/4" [6.3mm] 2-Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric characters required when ordering.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Please select a number or letter for the character:
Quantity
CM9X-Thumb
CM9X25 1/4-inch Symbol 1/2" Round Insert
$22.05 $19.85 Online Sale!
CM9X25SYM

CM9X25SYM 1/4" [6.3mm] Symbol round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the symbol number required when ordering.

Symbol List

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Please select a symbol number
Quantity
CM9X-Thumb
CM9X38 3/8-inch Character 1/2" Round Insert
$16.54 $14.89 Online Sale!
CM9X38

CM9X38 3/8" [9.8mm] Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric character required when ordering.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Please select a number or letter for the character:
Quantity
CM9X-Thumb
CM9X38C2 3/8-inch 2-Character 1/2" Round Insert
$44.10 $39.69 Online Sale!
CM9X38C2

CM9X38C2 3/8" [9.8mm] 2-Character round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select the alpha-numeric characters required when ordering.

Some characters may be reduced in width (narrower) to fit.

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Select the letters or numbers you want:
Quantity
CM9X-Thumb
CM9X38 3/8-inch Symbol 1/2" Round Insert
$29.77 $26.80 Online Sale!
CM9X38SYM

CM9X38SYM 3/8" [9.8mm] Symbol round insert for industrial part marking. 1/2" diam. x 1.25" long [12.7mm diam x 31.7mm long] with a groove for use with spring clip or set screw retention. Please select symbol number required when ordering.

Symbol List

1. Quality tool steel

2. Precision tolerances for marking applications

3. Standard Engraving depth

4. Standard font

5. Sharp Face Character

6. Standard heat treat for marking dies

CM9X Round Insert Technical Data Sheet

Over estimates of character size



Please select a symbol number
Quantity
