Bottoming Marker

Link to bottoming marker catalog pages Go to Quotation Request page

Typical installation of CMM104 and CMM105 bottoming marker. For use in stamping presses. These marking dies are an automotive industry standard.

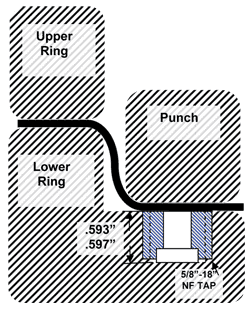

Bottoming marker drawing

CMT#: CMM105
Ford#: DG1-0105
DCX#: 21-460-079

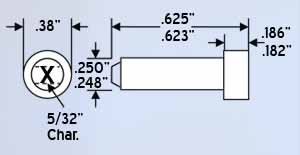

CMM105 stamp drawing



CMT#: CMM104
Ford#: DG1-104
DCX#: 21-912-0005

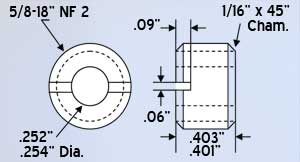

CMM104 stamp drawing

divider

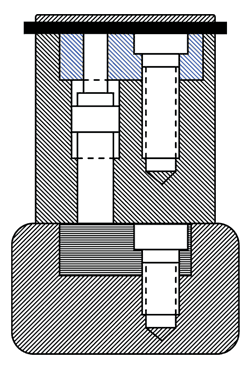

Typical installation of CMM201 and CMM202 bottoming marker. For use with forming dies having spring or air pads.

Bottoming marker drawing

CMT#: CMM201
Ford#: DG1-0201

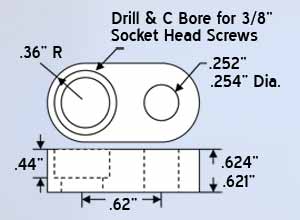

CMM201 stamp drawing



CMT#: CMM202
Ford#: DG1-0202

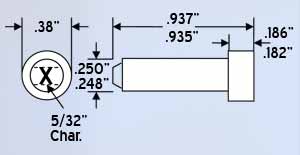

CMM202 stamp drawing
