postheadericon 4 Sided Bar Stock Marking Machines

Pinter Friendly Quote Application

Columbia's 4 sided bar stock marking machines mark an amazing 210 feet per minute on 3/8" to 3" hex and round bar stock.

Features:

  • Heavy duty machine style base
  • Continuous duty feed system
  • Adjustable part locating guides with sealed bearings for trouble free operation
  • Micro-mark depth adjustment
  • Heavy duty gear driven marking rollers
  • Independent pressure rams with self centering backup support rolls (one lead screw adjusts backup and marking roll simultaneously)
  • Variable speed high performance drive with "set-up jog" feature
  • Switch for backward and reverse drive
  • Oil bath transmission
  • Central lubrication manifold with all internal points piped to external access lube point
4 sided bar stock marking machine features
close up of 4 sided barstock marking rollers

Features Continued:

  • Hardened & ground drive shafts with heavy duty sealed bearings
  • Continuous rated motor 2 HP 230 V/1750 RPM
  • Electrical control panel with DC variable speed controller and drive, power transformer, fused safety disconnect, master start/stop and all component devices terminated and wired
  • OSHA required guarding complete with access panels and hinged tool access gate, latched, mounted and switched for "no operation"

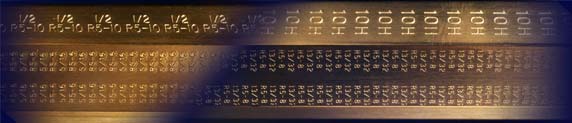

closeup of marked barstock
