postheadericon Groove Steel Stamps

4meta name="description" content="CMT offers groove steel stamps along with a large assortment of other steel stamps and dies." />

Printer Friendly Quote

Groove steel stamps are held into a holder with a spring clip or pin. This pin is made of spring steel, and is designed to withstand impact forces.

Applications include:

  • All air impact markers
  • HG Series Hand holders
  • Custom holders

Groove style stamp

BUY GROOVE STEEL STAMPS
ONLINE AND SAVE!

The following character sizes are available at discounted prices through our online store: 1/16", 3/32", 1/8", 3/16" and 1/4".

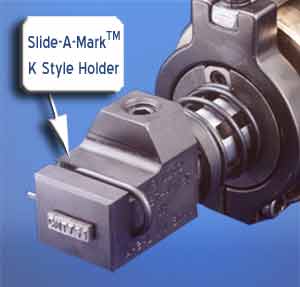

Slide-a-mark K style holder

divider

Groove stamps come in a variety of standard configurations:  CMG, CMC and CMV.  Custom sizes can be ordered by providing the blank information.

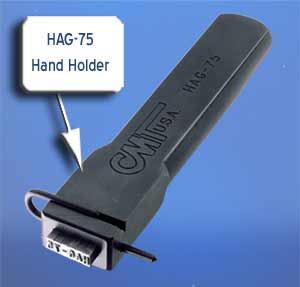

HAG-75 Hand holder

Reverse Groove stamps are the same as the standard, but with the groove located at the top of the character. Denote reverse groove option as follows: CMGR, CMVR, CMCR.

divider

Standard Groove Type Styles

Buy Now

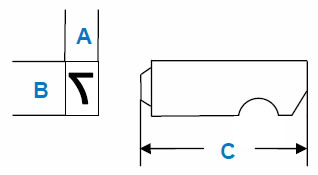

Groove Type Styles Drawing

Char Size A B C Catalog No
1/32 1/16 1/4





7/8

CMG03-
1/16 1/16 1/4 CMG06-
3/32 3/32 1/4 CMG09-
1/8 1/8 1/4 CMG13-
5/32 3/16 1/4 CMG16-
5/32 3/16 5/16 CMG16W-
5/32 5/32 1/4 CMG16N-
3/16 3/16 5/16 CMG19-
1/4 1/4 3/8 CMG25-

divider

Custom Style CMV Series

Quote

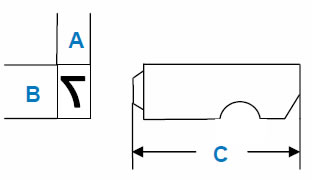

Custom Style CMV Series

Char Size A B C Catalog No
1/32 1/16 1/4





7/8

CMV03-
1/16 1/16 1/4 CMV06-
3/32 3/32 1/4 CMV09-
1/8 1/8 1/4 CMV13-





divider

Custom Style CMC Series

Quote

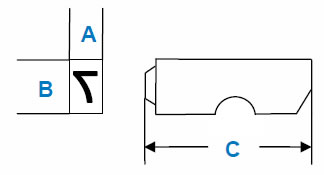

Custom Style CMC Series

Char Size A B C Catalog No
1/32 1/16 1/4





1 1/4

CMC03-
1/16 1/16 1/4 CMC06-
3/32 3/32 1/4 CMC09-
1/8 1/8 1/4 CMC13-
5/32 3/16 5/16 CMC16-
3/16 3/16 5/16 CMC19-
1/4 1/4 3/8 CMC25-



divider
