Model 98 8Ton Single Acting Air Impact Marker

CMT Model 98 8 Ton Air Impact Marker

Comprehensive Operation Guide with ordering and maintenance guidelines.

Technical Data Sheet
Drawings

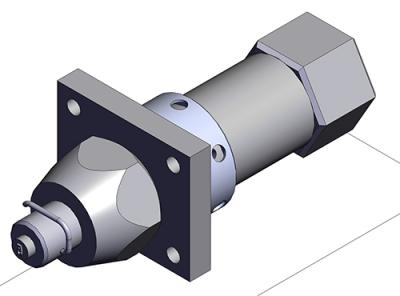

098SP-OB-EF.jpg 98SP-OB-EF 8-ton Air Impact Marker
$807.00 $726.00 Online Sale!
098SPOBEF

98SP-OB-EF 8-ton Air impact marker is single acting with spring return action. The model 98 is a compact and rugged air powered marking unit. The powerful 16,000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is 1/2" round.

1. Sub-Plate mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to hold (1) round CM9 insert.

5. Removable rear end cap for maintenance

6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Filter for air intake

Requires compressed air, connection: 1/2" NPT

Operating Pressure Range- 20-80 PSI [1.3-5.5 Ba]

Max Pressure: 16,000 Lbs. [71.17 kN] impact Force

Dimensions – 10.25” x 4” x 4” [209.6mm x 76.2mm x 76.2mm]

Weight – 8 Lbs. [1.36 Kg]

Operation Guide

Drawings

Video

FAQ


Quantity

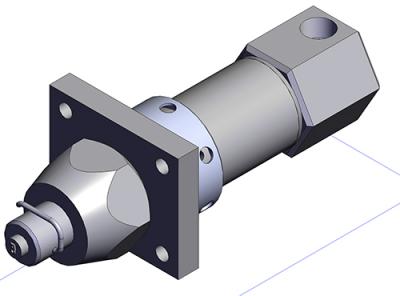

098SP-OB-SF.jpg 98SP-OB-SF 8-ton Air Impact Marker
$832.00 $749.00 Online Sale!
098SPOBSF

98SP-OB-SF 8-ton Air impact marker is single acting with spring return action. The model 98 is a compact and rugged air powered marking unit. The powerful 16,000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is 1/2" round.

1. Sub-Plate mount

2. Keyed rod to maintain stamp orientation

3. Side port air connection on the rear end cap

4. Integrated stamp holder to hold (1) round CM9 insert.

5. Removable rear end cap for maintenance

6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Filter for air intake

Requires compressed air, connection: 1/2" NPT

Operating Pressure Range- 20-80 PSI [1.3-5.5 Ba]

Max Pressure: 16,000 Lbs. [71.17 kN] impact Force

Dimensions – 10.25” x 4” x 4” [209.6mm x 76.2mm x 76.2mm]

Weight – 8 Lbs. [1.36 Kg]

Operation Guide

Drawings

Video

FAQ


Quantity
098SP-OA-EF.jpg 98SP-OA-EF 8-ton Air Impact Marker
$857.00 $771.00 Online Sale!
098SPOAEF

98SP-OA-EF 8-ton Air impact marker is single acting with spring return action. The model 98 is a compact and rugged air powered marking unit. The powerful 16,000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is rectangular with a size of 1/4" x 5/8".

1. Sub-plate mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (10) 1/16" characters CMG06 or (5) 1/8" characters CMG13

5. Removable rear end cap for maintenance

6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Filter for air intake

Requires compressed air, connection: 1/2" NPT

Operating Pressure Range- 20-80 PSI [1.3-5.5 Ba]

Max Pressure: 16,000 Lbs. [71.17 kN] impact Force

Dimensions – 10.25” x 4” x 4” [209.6mm x 76.2mm x 76.2mm]

Weight – 8 Lbs. [1.36 Kg]

Operation Guide

Drawings

Video

FAQ


Quantity

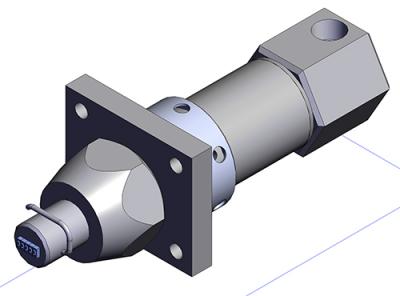

098SP-OA-SF.jpg 98SP-OA-SF 8-ton Air Impact Marker
$882.00 $793.00 Online Sale!
098SPOASF

98SP-OA-SF 8-ton Air impact marker is single acting with spring return action. The model 98 is a compact and rugged air powered marking unit. The powerful 16,000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is rectangular with a size of 1/4" x 5/8".

1. Sub-plate mount

2. Keyed rod to maintain stamp orientation

3. Side port air connection on the rear end cap

4. Integrated stamp holder to holder either (10) 1/16" characters CMG06 or (5) 1/8" characters CMG13

5. Removable rear end cap for maintenance

6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Filter for air intake

Requires compressed air, connection: 1/2" NPT

Operating Pressure Range- 20-80 PSI [1.3-5.5 Ba]

Max Pressure: 16,000 Lbs. [71.17 kN] impact Force

Dimensions – 10.25” x 4” x 4” [209.6mm x 76.2mm x 76.2mm]

Weight – 8 Lbs. [1.36 Kg]

Operation Guide

Drawings

Video

FAQ


Quantity
098SP-OA-EF.jpg 98SP-OAS75-EF 8-ton Air Impact Marker
$882.00 $793.00 Online Sale!
098SPOAS75EF

98SP-OAS75-EF 8-ton Air impact marker is single acting with spring return action. The model 98 is a compact and rugged air powered marking unit. The powerful 16,000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is rectangular with a size of 1/4" x 6/8".

1. Sub-Plate angle bracket mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (12) 1/16" characters CMG06 or (6) 1/8" characters CMG13

5. Removable rear end cap for maintenance

6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Filter for air intake

Requires compressed air, connection: 1/2" NPT

Operating Pressure Range- 20-80 PSI [1.3-5.5 Ba]

Max Pressure: 16,000 Lbs. [71.17 kN] impact Force

Dimensions – 10.25” x 4” x 4” [209.6mm x 76.2mm x 76.2mm]

Weight – 8 Lbs. [1.36 Kg]

Operation Guide

Drawings

Video

FAQ


Quantity
098SP-OA-SF.jpg 98SP-OAS75-SF 8-ton Air Impact Marker
$907.00 $816.00 Online Sale!
098SP-OAS75-SF

98SP-OAS75-SF 8-ton Air impact marker is single acting with spring return action. The model 98 is a compact and rugged air powered marking unit. The powerful 16,000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is rectangular with a size of 1/4" x 6/8".

1. Sub-Plate angle bracket mount

2. Keyed rod to maintain stamp orientation

3. Side port air connection on the rear end cap

4. Integrated stamp holder to holder either (12) 1/16" characters CMG06 or (6) 1/8" characters CMG13

5. Removable rear end cap for maintenance

6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Filter for air intake

Requires compressed air, connection: 1/2" NPT

Operating Pressure Range- 20-80 PSI [1.3-5.5 Ba]

Max Pressure: 16,000 Lbs. [71.17 kN] impact Force

Dimensions – 10.25” x 4” x 4” [209.6mm x 76.2mm x 76.2mm]

Weight – 8 Lbs. [1.36 Kg]

Operation Guide

Drawings

Video

FAQ


Quantity

Accessories and Required tooling

CMG Rectangular Groove Type

Rectangular groove type for use with OA and OAS rod style of the 78, 88, 98, and 288 air impact markers

Learn More

CM9X Round Insert

1/2" round insert for use with 98 model.

Learn More

Retro-fit Valva Pack

Complete air preparation for the models 88, 98, 78, and 288.

Learn More

Spare parts

Replacement clips, repair kit, individual spring and seals.

Learn More
