Spare Parts - 98 8 Ton Air Impact Maker

CMT Model 98 - Spare Parts

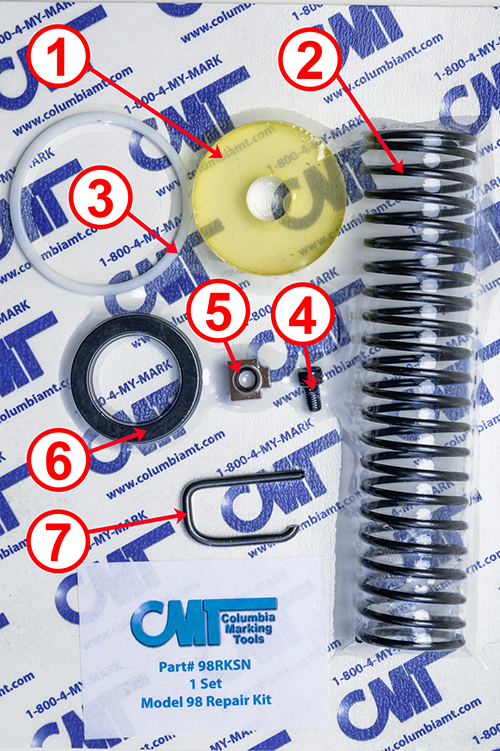

The Model 98 repair kit contains all the wearable parts for the air impact marker. These are also sold separately.

  1. 098-9A Bumper
  2. 098-6 Return Spring
  3. 098-20 Rear Cap Washer
  4. 98-10 SHC Screw
  5. 98-11 Key
  6. 98-7 Piston Packing
  7. 98-12 Spring Clip
Model 98 Repair Kit 98RKSN

Technical Details

Parts

CMT Air Impact Marker Model 98 parts Breakdown
  1. Stamp - wearable part
  2. Rod/Stamp Holder
  3. Spring Clip - Retaining clip
  4. Keyway - maintains orientation of stamp(s)
  5. Front Nut - do not remove, will void warranty
  6. Rear end cap - remove for seal replacement
  7. Sleeve
  8. Muffler assembly - protect system from particulate
  9. Mounting Bracket - do not remove, will void warranty

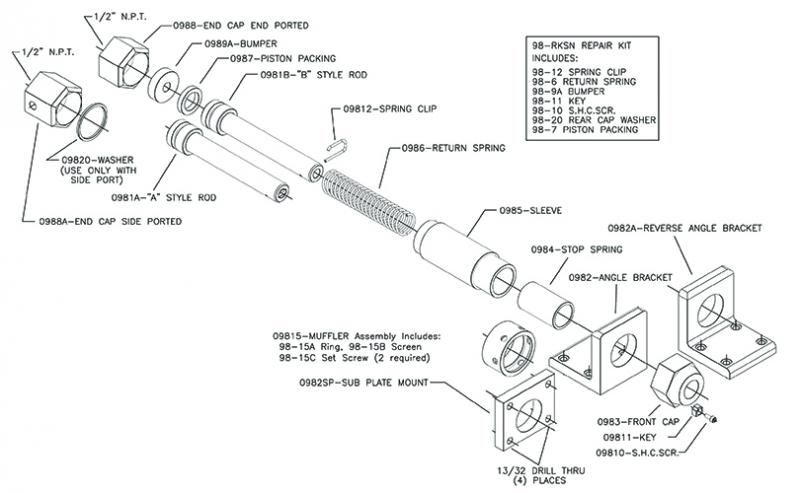

Bill of Materials

Model 98 Air Impact Marker Bill of Material

98-RKSN Repair Kit
$60.00 $54.00 Online Sale!
98RKSN

The Model 98 repair kit contains all the wearable parts for the air impact marker. These are also sold separately.

  1. 98-9A Bumper
  2. 98-6 Return Spring
  3. 98-20 Rear Cap Washer
  4. 98-10 SHC Screw
  5. 98-11 Key
  6. 98-7 Piston Packing
  7. 98-12 Spring Clip

Quantity
Maintainence
98-20 Washer
$12.50 $11.25 Online Sale!
09820 Quantity
Maintainence
98-12 Spring Clip
$6.60 $6.00 Online Sale!
09812 Quantity
Maintainence
98-11 Rod Key
$13.20 $12.00 Online Sale!
09811 Quantity
Maintainence
98-10 SH Cap screw
$2.20 $2.00 Online Sale!
09810 Quantity
Maintainence
98-9 Stop Bumper
$4.40 $4.00 Online Sale!
09809 Quantity
Maintainence
98-7 Piston Packing
$12.10 $11.00 Online Sale!
09807 Quantity
Maintainence
98-6 Return Spring
$11.00 $10.00 Online Sale!
09806 Quantity
Maintainence
98-4 Stop Sleeve Spring
$33.00 $30.00 Online Sale!
09804 Quantity

Accessories and Required tooling

CMG Rectangular Groove Type

Rectangular groove type for use with OA and OAS rod style of the 78, 88, 98, and 288 air impact markers

Learn More

CM9X Round Insert

1/2" round insert for use with 98 model.

Learn More

Retro-fit Valve Pack

Complete air preparation for the models 88, 98, 78, and 288.

Learn More

Operation Guide

Complete technical data sheet on the CMT Model 98 8-ton single acting air impact marker.

Learn More
