Model 78 Double Acting Air Impact Marker

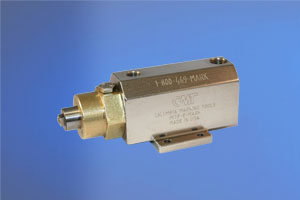

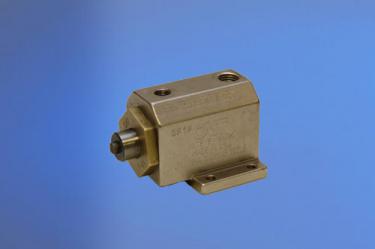

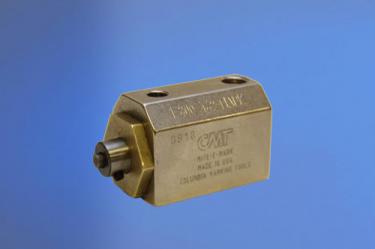

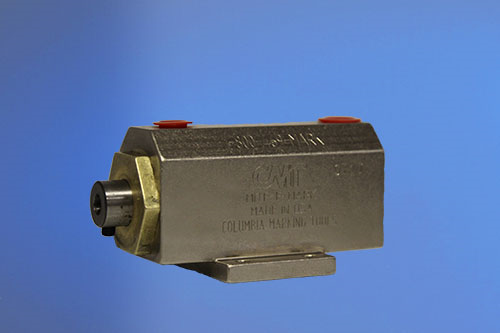

CMT Model 78 Mite-E-Mark Air Impact Marker

Comprehensive Operation Guide with ordering and maintenance guidelines.

Technical Data Sheet
Drawings

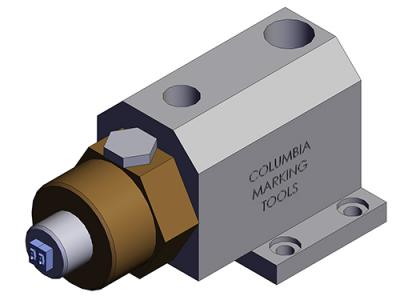

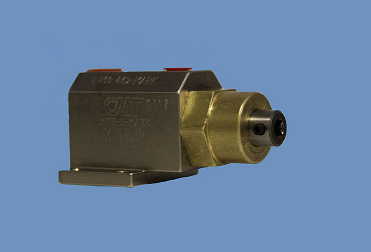

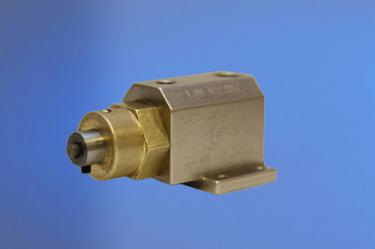

78-FK-OA-10 Mite-E-Mark
$661.00 $595.00 Online Sale!
078FKOA10

78-FK-OA-10 Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

Requires compressed lubricated air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity

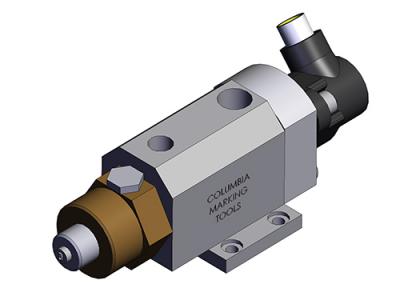

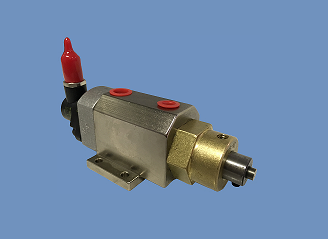

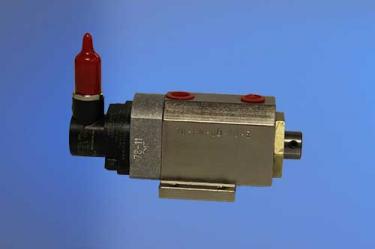

78-FK-OA-10-E Mite-E-Mark
$1,050.00 $945.00 Online Sale!
078FKOA10E

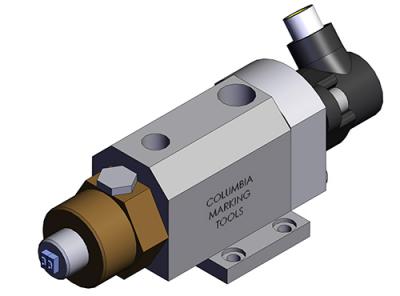

78-FK-OA-10-E Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed lubricated air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity

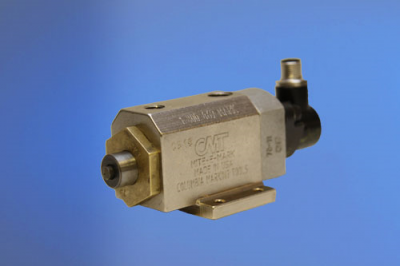

78-FK-OA-10-E-NL Mite-E-Mark
$1,106.00 $995.00 Online Sale!
078FKOA10ENL

78-FK-OA-10-E-NL Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity
78-FK-OA-10-NL Mite-E-Mark
$717.00 $645.00 Online Sale!
078FKOA10NL

78-FK-OA-10-NL Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity

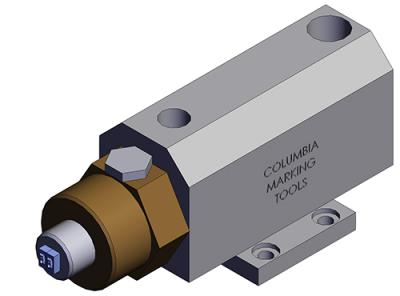

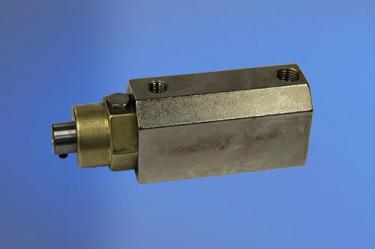

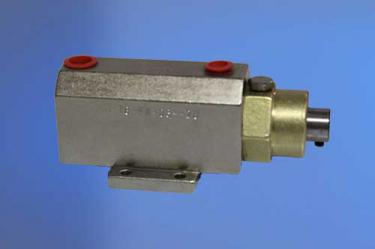

78-FK-OA-20 Mite-E-Mark
$717.00 $645.00 Online Sale!
078FKOA20

78-FK-OA-20 Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 2,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 2" [25.4mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed lubricated air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 2500 Lbs. [11.12 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity

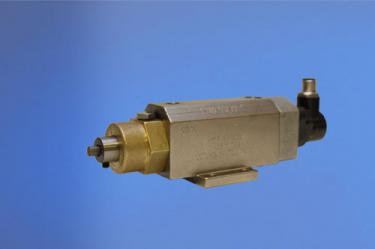

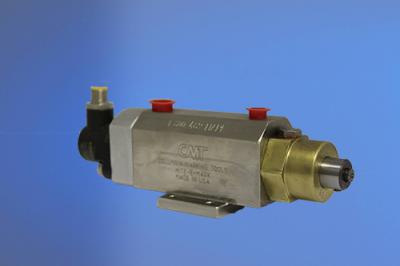

78-FK-OA-20-E Mite-E-Mark
$1,106.00 $995.00 Online Sale!
078FKOA20E

78-FK-OA-20 Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 2,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 2" [25.4mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed lubricated air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 2500 Lbs. [11.12 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity

Accessories and Required tooling

CMF Rectangular Groove Type

Rectangular flat type for use in the 78 - OA rod.

Learn More

CM7X Round Insert

1/4" round insert for use with 75 - OB rod.

Learn More

Retro-fit Valve Pack

Complete air preparation for the models 88, 98, 78, and 288.

Learn More

Spare parts

Replacement clips, repair kit, individual spring and seals.

Learn More
