CMT Handy Andy X offers Economical Flexible Fast Dot-Peen marking.

embed video html by EasyHtml5Video.com v4.0

HANDY ANDY SPECIFICATIONS

The Handy Andy benchtop marking station is a two-axis stepper motor system, with a carbide air powered pin. This system requires a customer-supplied PC, and customer-required part fixturing to secure parts during the marking process.

Technical PDF

GENERAL

  • Designed For Industrial part marking
  • Marking Window 3.15" x 1.97" (50 x 80mm)
  • Marking Speed 3-4 characters per second
  • Marking Material Plastic, wood, metals (up to 45RC)
  • Windows PC Required - not included
  • Compatible OS Windows XP and newer
  • PC Connection USB
  • USB Cable Length 3 ft
  • Power 110 VAC
  • Compressed Air Required, 1/4 NPT
  • Air Pressure Range 30-75 PSI

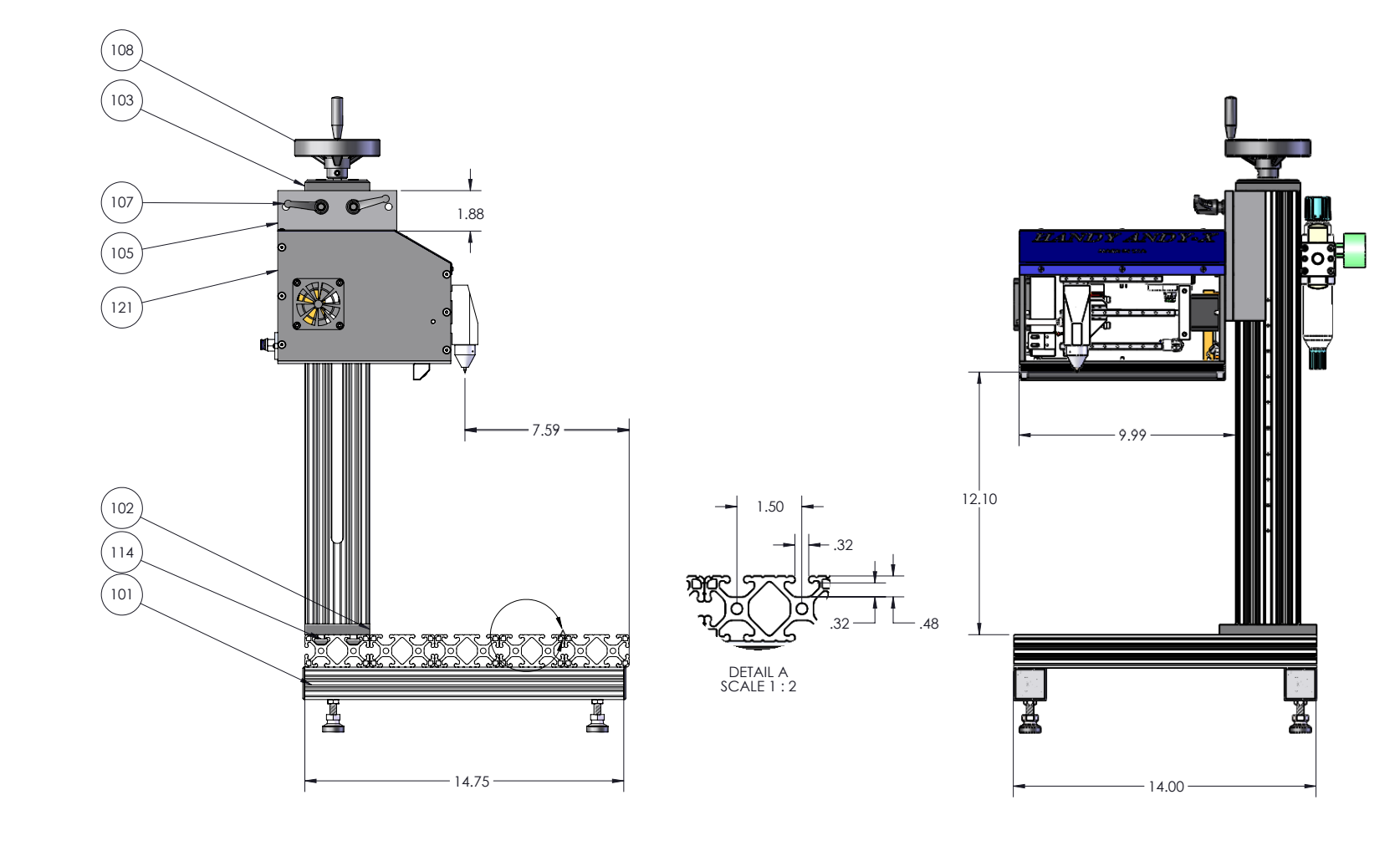

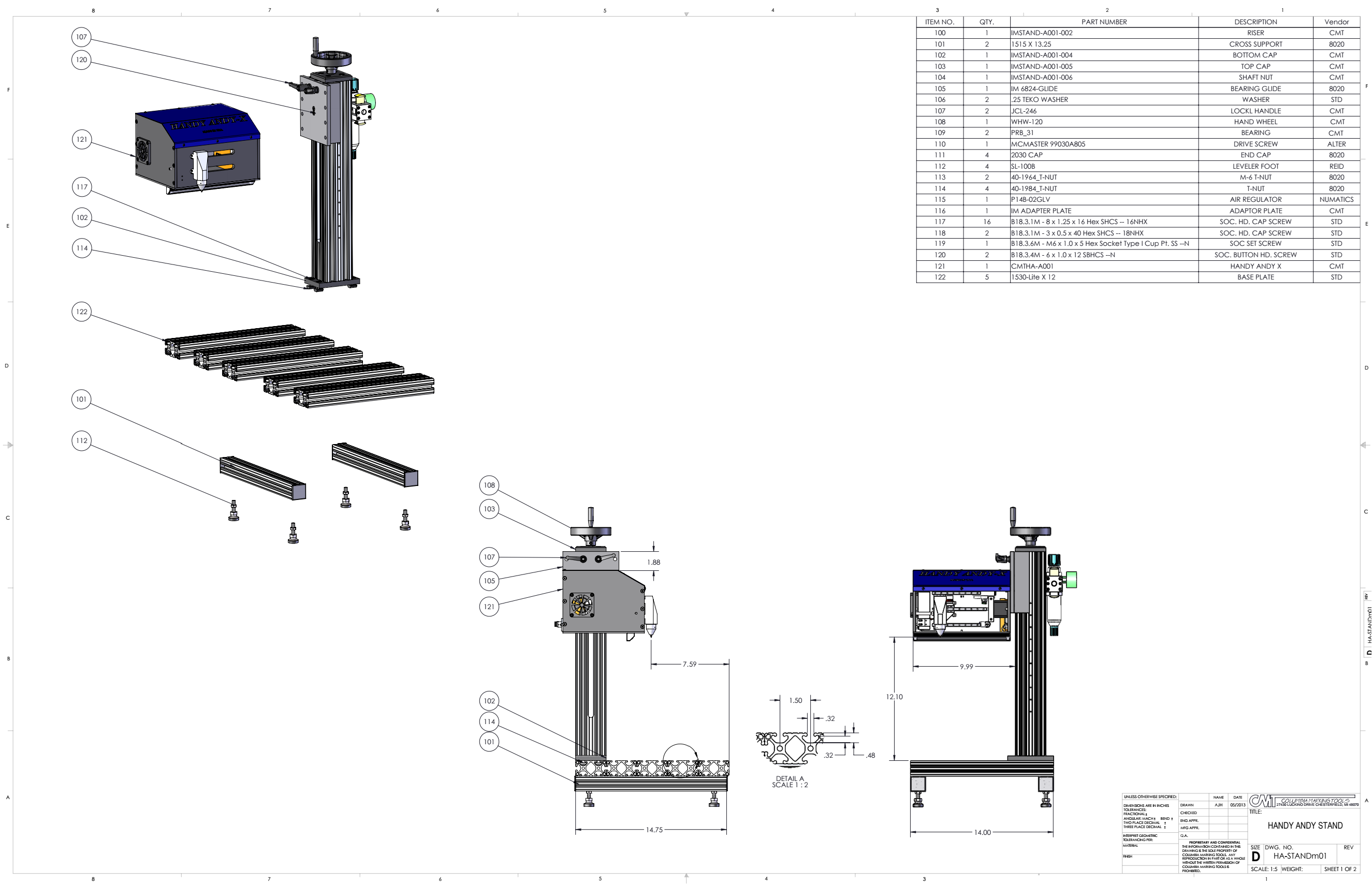

Dimensions And Parts Lists

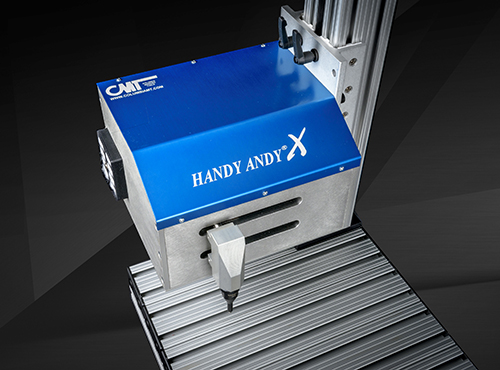

Handy-Andy-Thumb
Handy Andy X Dot-Peen Marking Machine
$4,600.00 $3,910.00 Online Sale!
HANDYANDYX

The Handy Andy X is a fully programmable dot-peen marking machine. The EASY-TO-USEmachine can automatically apply serial numbering, date codes, job numbers, lot numbers, and even company logos. The PC software works with Windows® (Xp and newer versions) and is easy to understand and operate. Simple pull-down menus, icons, hot keys, text orientation control and point and click features minimize training time. The marker unit is very compact, measuring only 9.85 x 10.25 x 6.3-inches. A two-axis stepper motor connected to the PC by a USB connection controls the dot peen marking stylus. Pneumatic dot peen force is 14.5 psi maximum, which allows for marking thin-walled, fragile parts. Standard features include a 14 x 15-inch table with a vertical height-adjustable post that mounts the marking unit. Vertical height adjustment is up to 7.9-inches. The Handy Andy marking unit, pressure gauge, stand and software can be purchased for under $5,000, an investment that is half the cost of most lower-end conventional programmable marking machines.

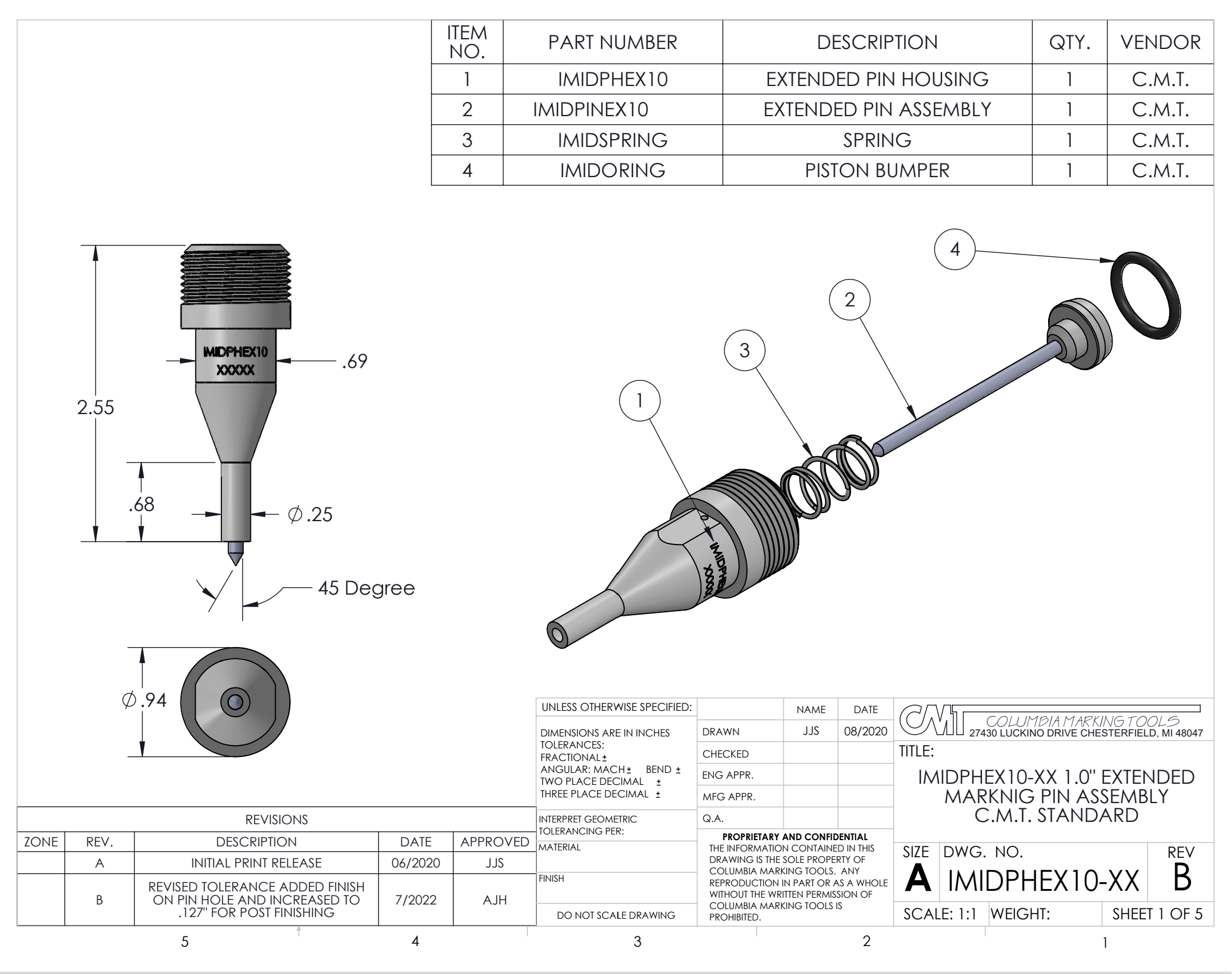

1. Marking head with metal pin housing, and cabide pin

2. Bench-top stand with T Slot mounting for fixturing parts

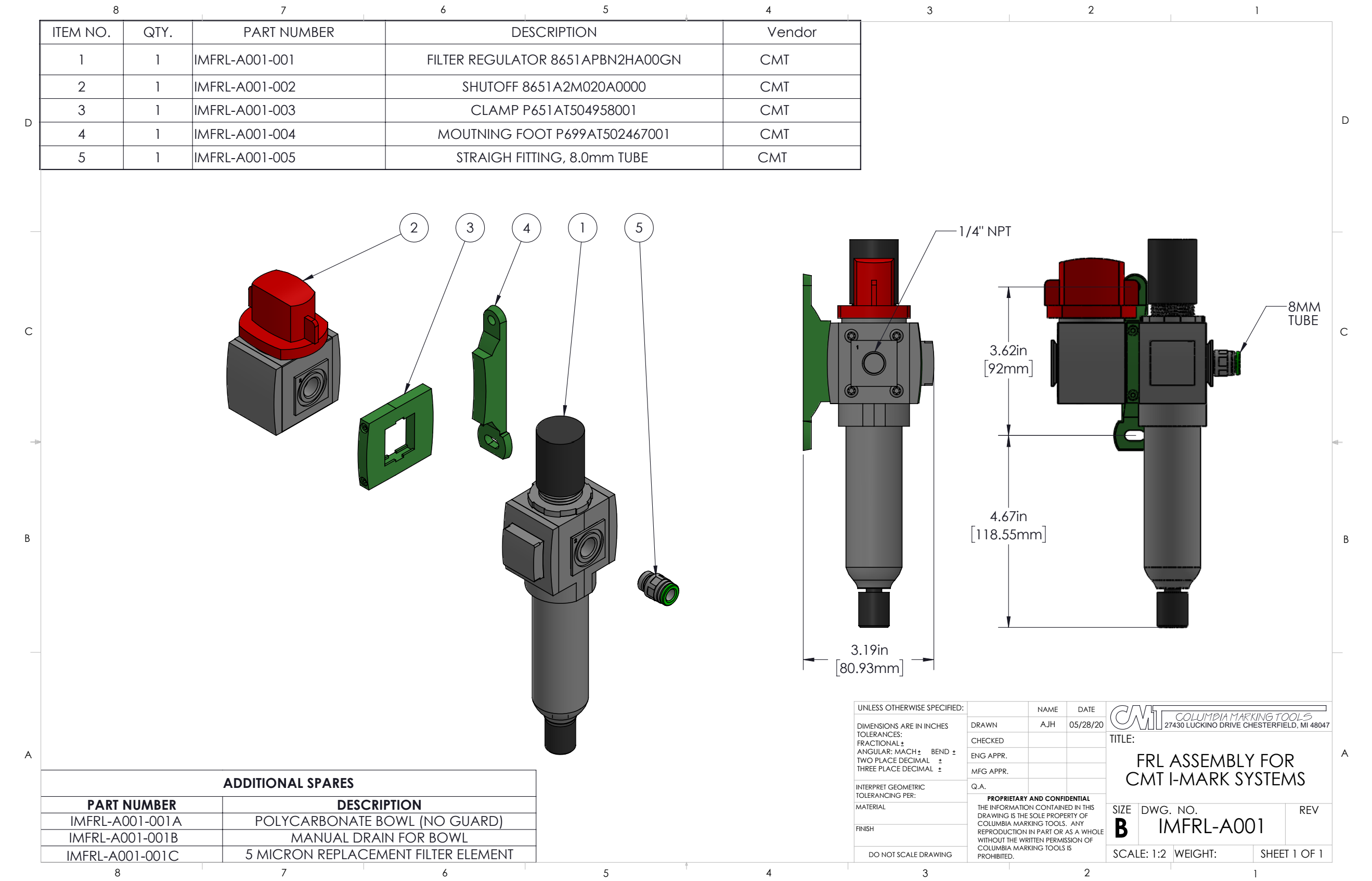

3. FRL - Filter, Regulator, Lubricator, and safety lockout compressed air preparation system

4. Windows software included free of charge for use with customer provided PC

Power - 110v AC

Compressed Air - 30-60 psi

Operting System - PC WIndows (required, not provided with unit)

Marking Window - 3.15" x 1.97"

Weight – 30lbs
