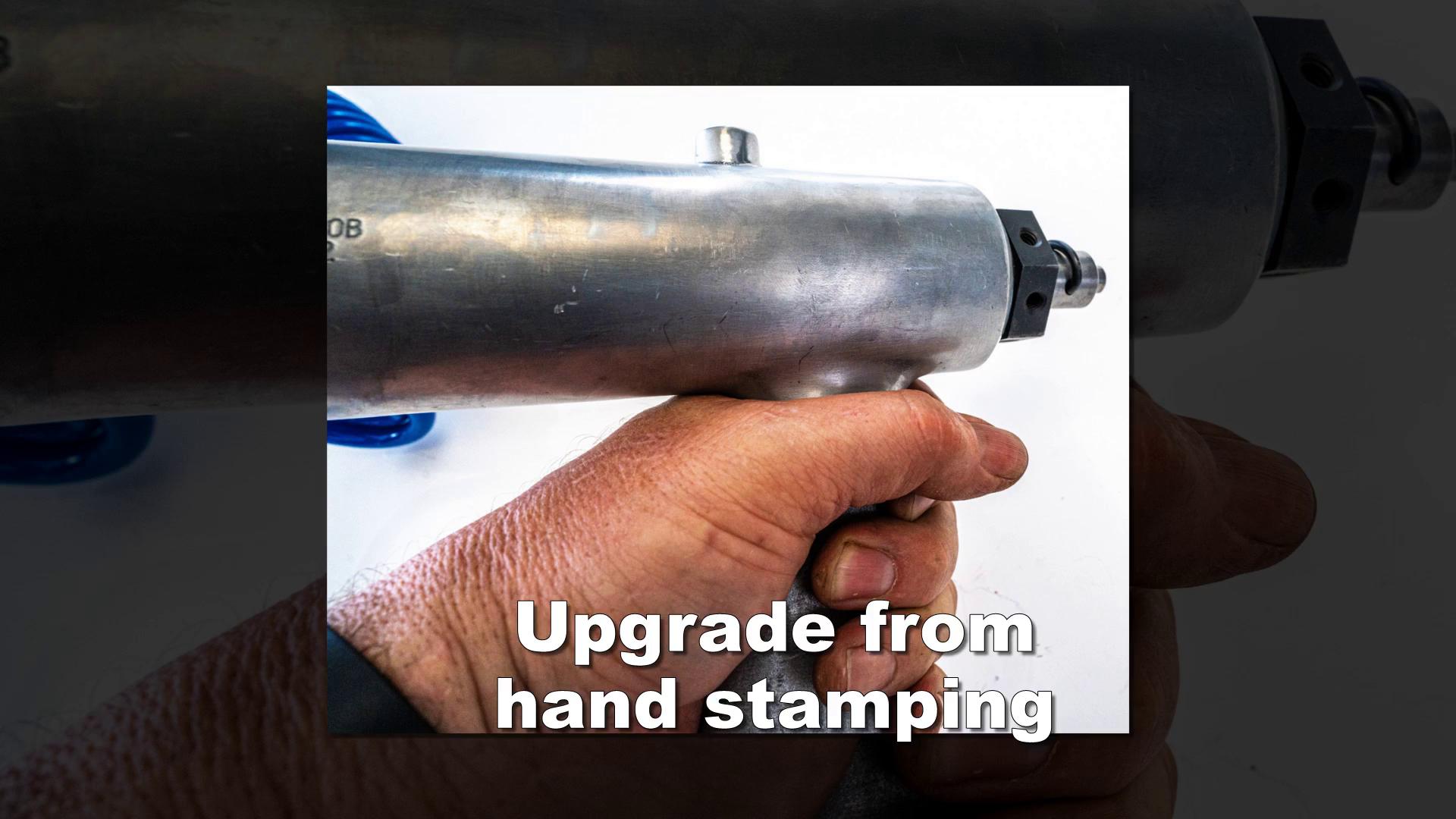

Model 75AT Standard Power Hand Held Air Impact Marker

CMT hand held air impact marker Model 75AT is Standard power Fast Easy to Use

Model 75 Hand Held Air Impact Marker Selection Guide

Selection is based on MATERIAL, character SIZE, and the NUMBER of characters.

Material Aluminum

Material Brass

Material Steel

Material Carbon Steel

Model 75ATOB standard pressure with round pocket to hold (1) 1/8" or smaller character CM8X.

Model 75ATOA standard pressure with square pocket to hold (4) 1/16" CMG06 characters.

Model 75ATOB standard pressure with round pocket to hold (1) 1/8" or smaller character CM8X.

Model 75ATOB standard pressure with round pocket to hold (1) 3/32" or smaller character CM8X.

Model 75ATOB standard pressure with round pocket to hold (1) 1/16" or smaller character CM8X.

Your marking parameters Not Found in the selection guide ?

CMT can help you make your mark!

Help is here!

Model 75AT-OB
$470.28 $423.26 Online Sale!
075ATOB

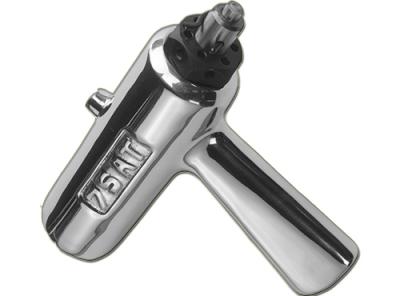

75AT-OB Air Hammer is a compact and standard powered hand held air impact marker. The powerful 1500 lbs of instantaneous impact force will mark ID and date codes into soft metals.The stamp holder holds one round 3/8" diameter insert (as depicted in photo).

1. Solid Frame with large hand hold area

2. Connection for tool balancer

3. Selection of two different air ports for operation

4. Integrated stamp holder to hold (1) round CM8X insert.

5. Removable collar for maintenance

6. Stamp pin to hold stamp in place (75-10 one is provided with unit, but this is considered a wearable part please purchase extra)

Requires compressed air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.7 kN] impact Force

Dimensions – 6.91” x 8.56” x 2.25” [175.4mm x217.5mm x 57.1mm]

Weight – 3 Lbs. [1.36 Kg]

Operation Guide

Video

FAQ


Quantity
Model 75AT-OA
$605.03 $544.53 Online Sale!
075ATOA

75AT-OA Air Hammer is a compact and standard powered hand held air impact marker. The powerful 1500 lbs of instantaneous impact force will mark ID and date codes into soft metals.The stamp holder is square 1/4" x 1/4" (not depicted in photo).

1. Solid Frame with large hand hold area

2. Connection for tool balancer

3. Selection of two different air ports for operation

4. Integrated stamp holder to holder either (4) 1/16" characters CMG06 or (2) 1/8" characters CMG13

5. Removable collar for maintenance

6. Stamp pin to hold stamp in place (75-10, one is provided with unit, but this is considered a wearable part please purchase extra)

Requires compressed air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.7 kN] impact Force

Dimensions – 6.91” x 8.56” x 2.25” [175.4mm x217.5mm x 57.1mm]

Weight – 3 Lbs. [1.36 Kg]

Operation Guide

Video

FAQ


Quantity
Model 75AT-OAS38
$672.41 $605.17 Online Sale!
075ATOAS38

75AT-OAS38 Air Hammer is a compact and standard powered hand held air impact marker. The powerful 1500 lbs of instantaneous impact force will mark ID and date codes into soft metals.The stamp holder is square 3/8" x 1/4" (not depicted in photo).

1. Solid Frame with large hand hold area

2. Connection for tool balancer

3. Selection of two different air ports for operation

4. Integrated stamp holder to holder either (6) 1/16" characters CMG06 or (3) 1/8" characters CMG13

5. Removable collar for maintenance

6. Stamp pin to hold stamp in place (75-10 one is provided with unit, but this is considered a wearable part please purchase extra)

Requires compressed air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.7 kN] impact Force

Dimensions – 6.91” x 8.56” x 2.25” [175.4mm x217.5mm x 57.1mm]

Weight – 3 Lbs. [1.36 Kg]

Operation Guide

Video

FAQ


Quantity

Accessories and Required tooling

CMG Rectangular Groove Type

Rectangular groove type for use with models 75ATOA, 85ATOA, 95ATOA, and 95N style holders

Learn More

CM8X Round Insert

3/8" round insert for use with 75ATOB, 85ATOB, and 095OB models.

Learn More

075FRL Filter, Regulator, Lubricator

Complete air preparation for the models 75AT, 85AT, and 95.

Learn More

Spare parts

Replacement clips, repair kit, individual spring and seals.

Learn More
