CMT hand held air impact marker Model 95 POW-R-MARK is Extreme power Fast Easy to Use

Model 95 Hand Held Air Impact Marker Selection Guide

Selection is based on MATERIAL, character SIZE, and the NUMBER of characters.

Material Aluminum

Material Brass

Material Steel

Material Carbon Steel

(1) 1/4" or smaller character

Model 095OB extreme pressure with round pocket to hold (1) 1/4" or smaller character CM8X

(2) to (4) 1/16" Characters

Model 95OA extreme pressure with square pocket to hold (4) 1/16" CMG06 characters.

(5) to (12) 1/16" Characters

Model 095ON-NA50 extreme pressure marker and holder combination for (5) to (8) 1/16" caracters. Model 095ON-NA75 marker and holder combination for (9) to (12) 1/16" characters. The CMG06 standard 1/16" characters are used in both holders.

(2) 1/8" characters

Model 095OA extreme pressure with square pocket to hold (2) 1/8" CMG13 characters.

(3) to (6) 1/8" Characters

Model 095ON-NA50 extreme pressure marker and holder combination for (3) to (4) 1/8" characters. Model 095ON-NA75 marker and holder combination for (5) to (6) 1/8" characters. The CMG13 standard 1/8" characters are used in both holders.

Up to (4) 3/16" Characters

Model 095ON-NB75 extreme pressure marker and holder combination for (3) to(4) 1/8" characters. The CMG19 standard 3/16" characters are used in this holder.

(2) 1/4" characters

Model 095ON-NC50 extreme marker and holder combination for (2) 1/4" characters. The CMG25 standard 1/4" characters are used in this holder.

(1) 1/8" or smaller character

Model 75ATOB standard pressure with round pocket to hold (1) 1/8" or smaller character CM8X.

(1) 3/16" character

Model 85ATOB high pressure with round pocket to hold (1) 3/16" or smaller character CM8X

(1) 1/4" character

Model 095OB extreme pressure with round pocket to hold (1) 1/4" or smaller character CM8X

(2) to (4) 1/16" Characters

Model 85ATOA high pressure with square pocket to hold (4) 1/16" CMG06 characters.

(5) to (12) 1/16" Characters

Model 095ON-NA50 marker and holder combination for (5) to (8) 1/16" caracters. Model 095ON-NA75 marker and holder combination for (9) to (12) 1/16" characters. The CMG06 standard 1/16" characters are used in both holders.

(2) 1/8" characters

Model 095OA extreme pressure with square pocket to hold (2) 1/8" CMG13 characters.

(3) to (6) 1/8" Characters

Model 095ON-NA50 marker and holder combination for (3) to(4) 1/8" characters. Model 095ON-NA75 marker and holder combination for (5) to (6) 1/8" characters. The CMG13 standard 1/8" characters are used in both holders.

Up to (4) 3/16" Characters

Model 095ON-NB75 marker and holder combination for (3) to (4) 1/8" characters. The CMG19 standard 3/16" characters are used in this holder.

(2) 1/4" characters

Model 095ON-NC50 marker and holder combination for (2) 1/4" characters. The CMG25 standard 1/4" characters are used in this holder.

(1) 3/32" or smaller character

Model 75ATOB standard pressure with round pocket to hold (1) 3/32" or smaller character CM8X.

(1) 1/8" character

Model 85ATOB high pressure with round pocket to hold (1) 1/8" or smaller character CM8X

(1) 1/4" character

Model 095OB extreme pressure with round pocket to hold (1) 1/4" or smaller character CM8X

(2) to (4) 1/16" Characters

Model 85ATOA high pressure with square pocket to hold (4) 1/16" CMG06 characters.

(5) to (12) 1/16" Characters

(2) 1/8" characters

Model 095OA extreme pressure with square pocket to hold (2) 1/8" CMG13 characters.

(3) to (4) 1/8" Characters

Model 095ON-NA50 marker and holder combination for (3) to(4) 1/8" characters. The CMG13 standard 1/8" characters are used in both holders.

Up to (3) 3/16" Characters

Model 095ON-NB75 marker and holder combination for (3) to (4) 1/8" characters. The CMG19 standard 3/16" characters are used in this holder.

(2) 1/4" characters

Model 095ON-NC50 marker and holder combination for (2) 1/4" characters. The CMG25 standard 1/4" characters are used in this holder.

(1) 1/16" or smaller character

Model 75ATOB standard pressure with round pocket to hold (1) 1/16" or smaller character CM8X.

(1) 3/32" character

Model 85ATOB high pressure with round pocket to hold (1) 3/32" or smaller character CM8X

(1) 1/4" character

Model 095OB extreme pressure with round pocket to hold (1) 1/4" or smaller character CM8X

(2) to 1/16" Characters

Model 85ATOA high pressure with square pocket to hold (4) 1/16" CMG06 characters.

Up to (8) 1/16" Characters

Model 095OA extreme pressure with square pocket to hold (4) 1/16" characters. Model 095ON-NA50 marker and holder combination for (5) to (8) 1/16" caracters. The CMG06 standard 1/16" characters are used in both holders.

(2) 1/8" characters

Model 095OA extreme pressure with square pocket to hold (2) 1/8" CMG13 characters.

(3) 1/8" Characters

Model 095ON-NA50 marker and holder combination for (3) to(4) 1/8" characters. The CMG13 standard 1/8" characters are used in both holders.

Up to (2) 3/16" Characters

Model 095ON-NB75 marker and holder combination for (3) to (4) 1/8" characters. The CMG19 standard 3/16" characters are used in this holder.

Your marking parameters Not Found in the selection guide ?

CMT can help you make your mark!

Help is here!

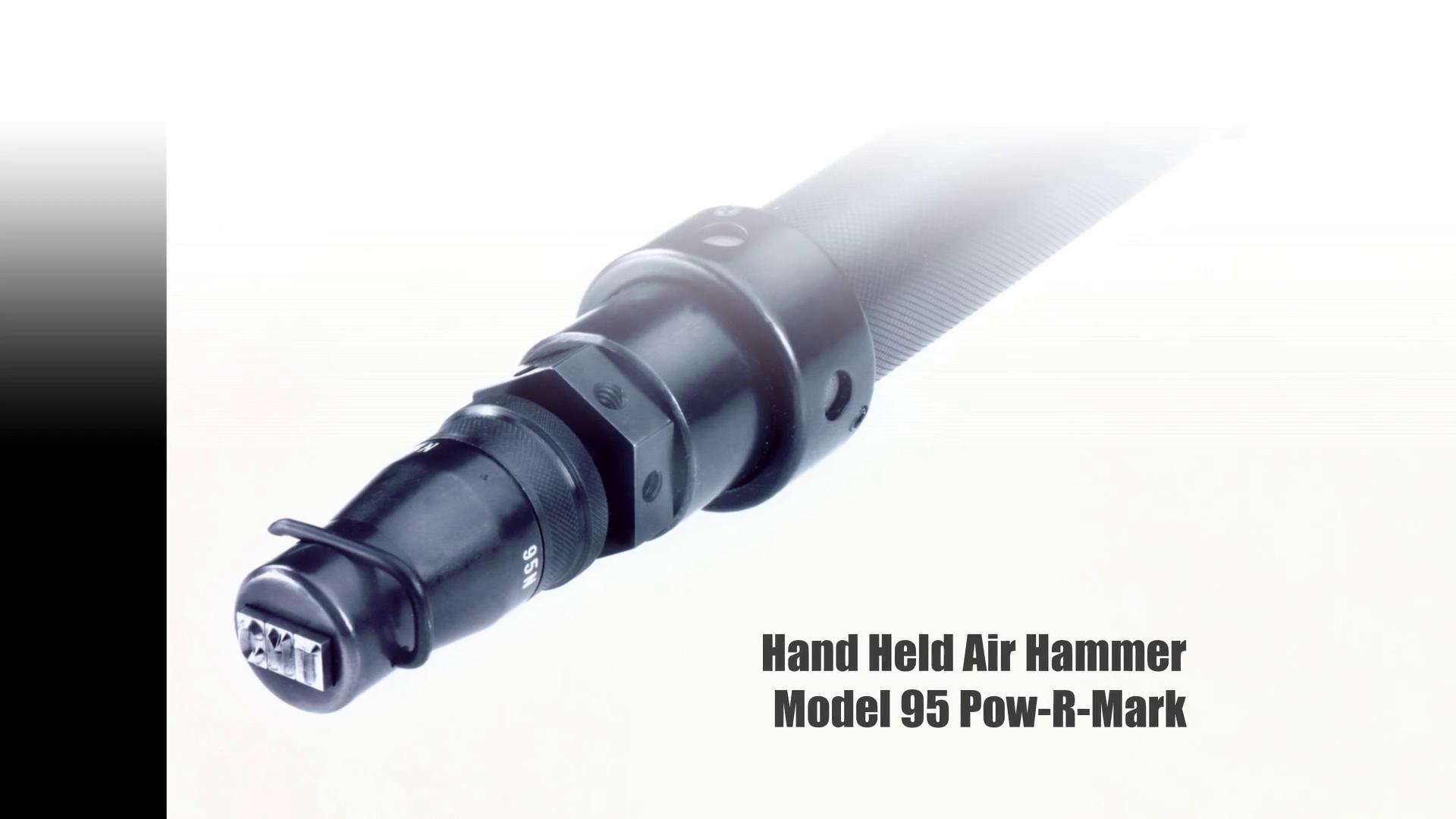

The Model 95 Pow-R-Mark is the most powerful hand held air hammer available.

The technical guide includes features, specificatins, dimensions, type capacity, bill of materials, and suggested spare parts.

Technical Guide

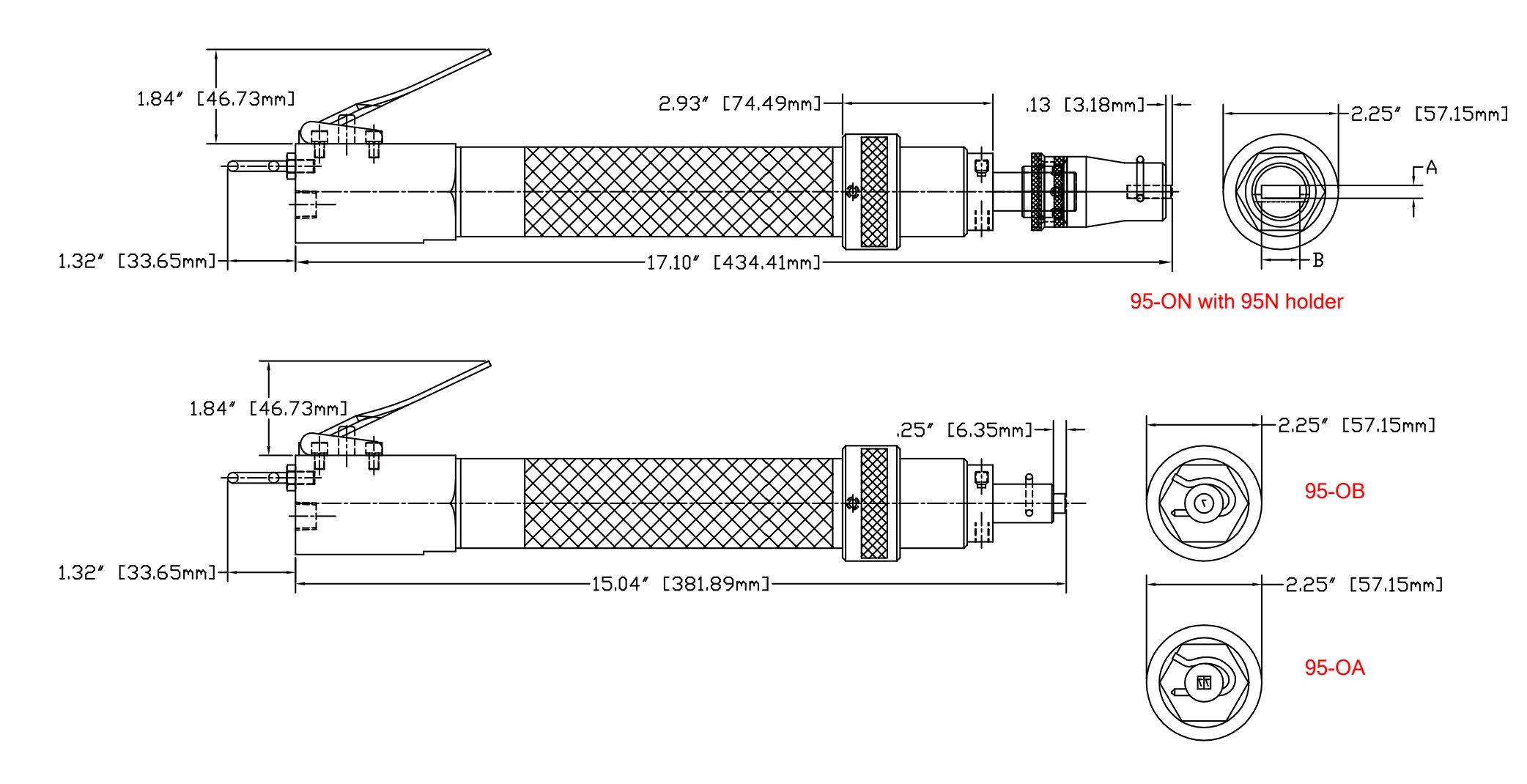

Dimensional drawing

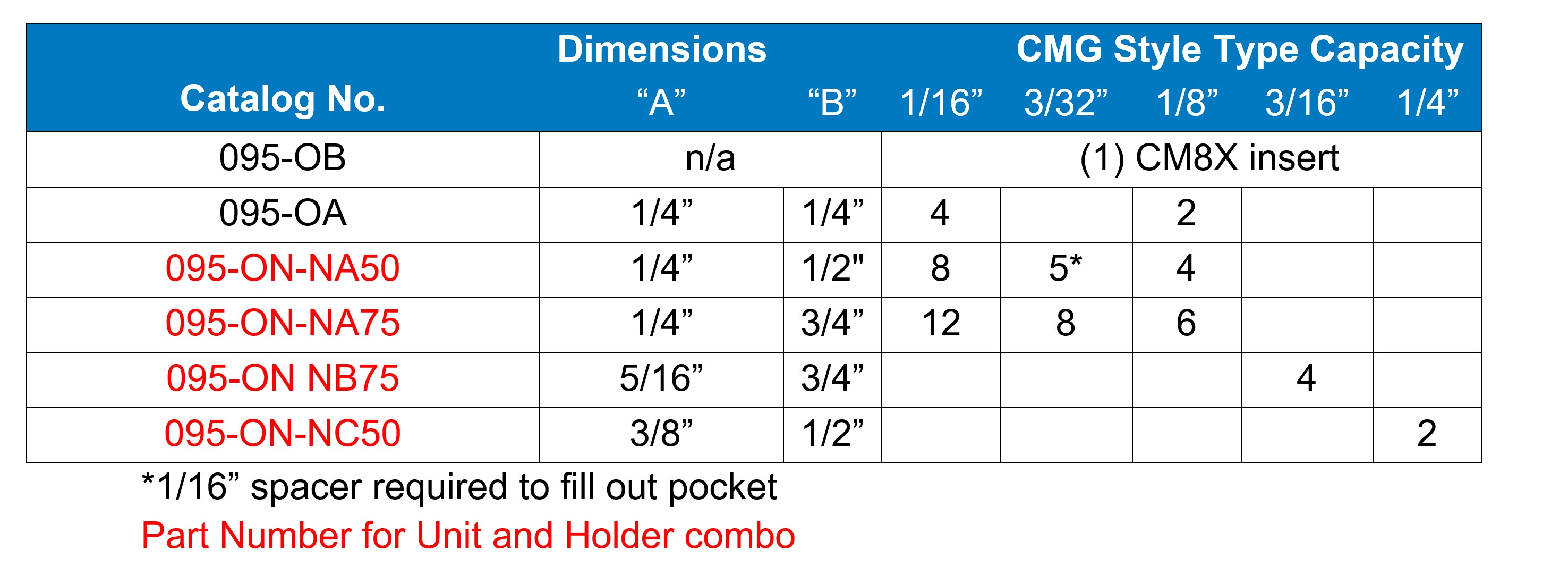

Model Number Chart and Reference Dimensions

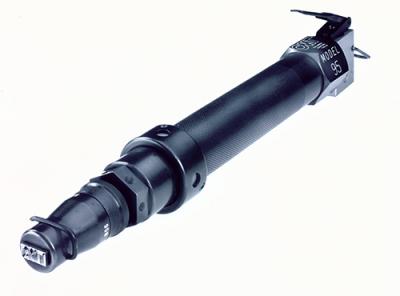

"Pow-R-Mark, Model 95-OB" ~~$1,079.35~~ $971.42 Online Sale! 095OB 95-OB Air Hammer is a compact and EXTREME powered hand held air impact marker. The powerful 8000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder holds one round 3/8" diameter insert (not depicted in photo). Features 1. Long knurled body for easy two position holding 2. Connection for tool balancer 3. Quick actuation level 4. Integrated stamp holder to hold (1) round CM8X insert. 5. Clip to hold stamp in place 95-22 Spring clip small(one is provided with unit, but this is considered a wearable part please purchase extra) Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 8,000 Lbs. [3630 Kg] impact Force Dimensions – 2.25" diam x 18.5" long Weight – 8 Lbs. [3.6 Kg] Links Operation Guide Video FAQ Quantity	"Pow-R-Mark, Model 95-OA" ~~$1,200.63~~ $1,080.57 Online Sale! 095OA 95-OA Air Hammer is a compact and EXTREME powered hand held air impact marker. The powerful 8000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The integrated stamp holder is square 1/4" x 1/4" (not depicted in photo). Features 1. Long knurled body for easy two position holding 2. Connection for tool balancer 3. Quick actuation level 4. Integrated stamp holder to holder either (4) 1/16" characters CMG06 or (2) 1/8" characters CMG13 5. Clip to hold stamp in place 95-22 Spring clip small(one is provided with unit, but this is considered a wearable part please purchase extra) Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 8,000 Lbs. [3630 Kg] impact Force Dimensions – 2.25" diam x 18.5" long Weight – 8 Lbs. [3.6 Kg] Links Operation Guide Video FAQ Quantity	Pow-R-Mark Model 95-ON-NA50 ~~$1,491.70~~ $1,342.53 Online Sale! 095-ON-NA50 95-ON-NA50 Air Hammer is a compact and EXTREME powered hand held air impact marker. The powerful 8000 lbs of instantaneous impact force will mark ID and date codes into soft metals The external holder has a rectangular stampholder 1/4" x 1/2" (not depicted in photo). Features 1. Long knurled body for easy two position holding 2. Connection for tool balancer 3. Quick actuation level 4. Integrated stamp holder to holder either (8) 1/16" characters CMG06 or (4) 1/8" characters CMG13 5. Clip to hold stamp in place 95-26 Spring clip large(one is provided with unit, but this is considered a wearable part please purchase extra) Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 8,000 Lbs. [3630 Kg] impact Force Dimensions – 2.25" diam x 18.5" long Weight – 8 Lbs. [3.6 Kg] Links Operation Guide Video FAQ Quantity
Pow-R-Mark Model 95-ON-NA75 ~~$1,503.81~~ $1,353.43 Online Sale! 095-ON-NA75 95-ON-NA75 Air Hammer is a compact and EXTREME powered hand held air impact marker. The powerful 8000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The external holder has a rectangular stampholder 1/4" x 3/4" (not depicted in photo). Features 1. Long knurled body for easy two position holding 2. Connection for tool balancer 3. Quick actuation level 4. Integrated stamp holder to holder either (12) 1/16" characters CMG06 or (6) 1/8" characters CMG13 5. Clip to hold stamp in place 95-26 Spring clip large(one is provided with unit, but this is considered a wearable part please purchase extra) Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 8,000 Lbs. [3630 Kg] impact Force Dimensions – 2.25" diam x 18.5" long Weight – 8 Lbs. [3.6 Kg] Links Operation Guide Video FAQ Quantity	Pow-R-Mark Model 95-ON-NB75 ~~$1,552.32~~ $1,397.09 Online Sale! 095-ON-NB75 95-ON-NAB75 Air Hammer is a compact and EXTREME powered hand held air impact marker. The powerful 8000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The external holder has a rectangular stamp holder 5/16"" x 3/4" (as depicted in photo). Features 1. Long knurled body for easy two position holding 2. Connection for tool balancer 3. Quick actuation level 4. Integrated stamp holder to holder either (4) 3/16" characters CMG19 5. Clip to hold stamp in place 95-26 Spring clip large(one is provided with unit, but this is considered a wearable part please purchase extra) Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 8,000 Lbs. [3630 Kg] impact Force Dimensions – 2.25" diam x 18.5" long Weight – 8 Lbs. [3.6 Kg] Links Operation Guide Video FAQ Quantity	Pow-R-Mark Model 95-ON-NC50 ~~$1,564.45~~ $1,408.01 Online Sale! 095-ON-NC50 95-ON-NC50 Air Hammer is a compact and EXTREME powered hand held air impact marker. The powerful 8000 lbs of instantaneous impact force will mark ID and date codes into soft metals.The external holder has a rectangular stampholder is square 3/8" x 1/2" (not depicted in photo). Features 1. Long knurled body for easy two position holding 2. Connection for tool balancer 3. Quick actuation level 4. Integrated stamp holder to holder either (2) 1/4" characters CMG25 5. Clip to hold stamp in place 95-26 Spring clip large(one is provided with unit, but this is considered a wearable part please purchase extra) Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 8,000 Lbs. [3630 Kg] impact Force Dimensions – 2.25" diam x 18.5" long Weight – 8 Lbs. [3.6 Kg] Links Operation Guide Video FAQ Quantity
"Pow-R-Mark, Model 95-ON" ~~$1,152.12~~ $1,036.91 Online Sale! 095ON 95-ON Air Hammer is a compact and EXTREME powered hand held air impact marker. The powerful 8000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The Rod Style "ON" is used with the N style external holders (not depicted in photo). Features 1. Long knurled body for easy two position holding 2. Connection for tool balancer 3. Quick actuation level 4. ON rod for use with external holders - 95NA50, 95HA75,95HB75, and 95NC50 Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 8,000 Lbs. [3630 Kg] impact Force Dimensions – 2.25" diam x 18.5" long Weight – 8 Lbs. [3.6 Kg] Links Operation Guide Video FAQ Quantity

Accessories and Required tooling

CMG Rectangular Groove Type

Rectangular groove type for use with models 75ATOA, 85ATOA, 95ATOA, and 95N style holders

Learn More

CM8X Round Insert

3/8" round insert for use with 75ATOB, 85ATOB, and 095OB models.

Learn More

075FRL Filter, Regulator, Lubricator

Complete air preparation for the models 75AT, 85AT, and 95.

Learn More

Spare parts

Replacement clips, repair kit, and quick action end assembly.

Learn More
