R-Buster Hand Holder

CMT offers R Buster Extreme Hand Holders featuring: Extra Long handle Hand Safety Guard Quick Type Release Made in USA

html5 video preload CMT Video

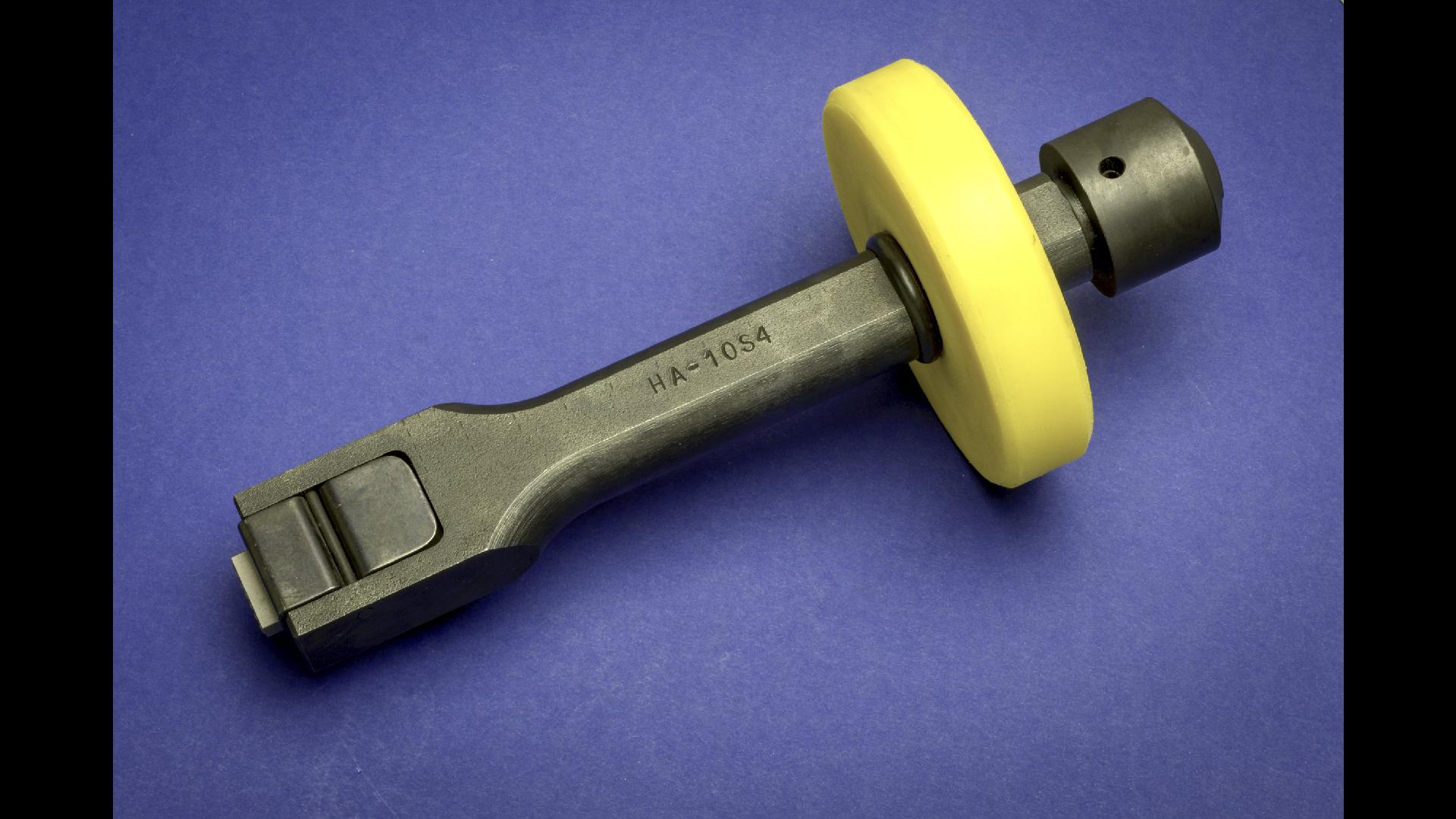

R Buster Extreme Hand Holder Details

Columbia Marking Tools R Buster Extreme Hand Holders Technical Guide

Overview of type changeover for multi-character hand stamping

GUIDE

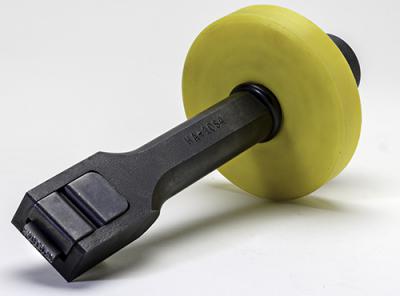

HCR-Thumb
HAR-50 R Buster Hand Holder
$347.61 $312.85 Online Sale!
HAR50

HAR50 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1/2" x 1/4" (not depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

8 of 1/16" (CMS06 Step Type)

5 of 3/32" (CMS09 Step Type)

4 of 1/8" (CMS13 Step Type)

Quick Release Hand Holder

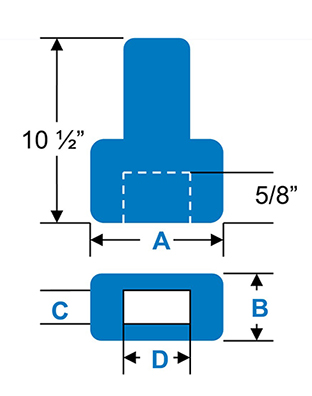

Length 10 1/2"

Width A = 1"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 1/2"

Operation Guide

Video

FAQ


Quantity
HCR-Thumb
HAR-75 R Buste Hand Holder
$347.61 $312.85 Online Sale!
HAR75

HAR75 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 3/4" x 1/4" (as depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

12 of 1/16" (CMS06 Step Type)

8 of 3/32" (CMS09 Step Type)

6 of 1/8" (CMS13 Step Type)

Standard Holder

Length 10 1/2"

Width A = 1" 3/4"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 3/4"

Operation Guide

Video

FAQ


Quantity
HCR-Thumb
HAR-100 R Buster Hand Holder
$384.20 $345.78 Online Sale!
HAR100

HAR100 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1" x 1/4" (not depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

16 of 1/16" (CMS06 Step Type)

10 of 3/32" (with a 1/32" spacer CMS0300) (CMS09 Step Type)

8 of 1/8" (CMS13 Step Type)

Standard Holder

Length 10 1/2"

Width A = 1" 3/4"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 1"

Operation Guide

Video

FAQ


Quantity
HCR-Thumb
HAR-150 R Buster Hand Holder
$403.41 $363.07 Online Sale!
HAR150

HA150 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1 1/2" x 1/4" (not depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

24 of 1/16" (CMS06 Step Type)

16 of 3/32" (CMS09 Step Type)

12 of 1/8" (CMS13 Step Type)

Standard Holder

Length 10 1/2"

Width A = 2 1/2"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 1 1/2"

Operation Guide

Video

FAQ


Quantity
HCR-Thumb
HAR-200 R Buste Hand Holder
$580.98 $522.88 Online Sale!
HAR200

HA200 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 2" x 1/4" (not depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

32 of 1/16" (CMS06 Step Type)

21 of 3/32" (requires a 1/32" spacer CMS0300)(CMs09 Step Type)

16 of 1/8" (CMS13 Step Type)

Standard Holder

Length 10 1/2"

Width A = 3"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 2"

Operation Guide

Video

FAQ


Quantity
HCR-Thumb
HBR-100 R Buster Hand Holder
$384.20 $345.78 Online Sale!
HBR100

HB100 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1" x 5/16" (not depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

5 of 5/32" (CMS16 Step Type)

5 of 3/16" (CMS19 Step Type)

Standard Holder

Length 10 1/2"

Width A = 1" 3/4"

Depth B = 1"

Pocket Height C = 5/16"

Pocket Width D = 1"

Operation Guide

Video

FAQ


Quantity
HCR-Thumb
HBR-150 R Buster Hand Holder
$412.34 $371.10 Online Sale!
HBR150

HB150 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1 1/2" x 5/16" (not depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

8 of 5/32" (CMS16 Step Type)

8 of 3/16" (CMS19 Step Type)

Standard Holder

Length 10 1/2"

Width A = 2" 1/2"

Depth B = 1"

Pocket Height C = 5/16"

Pocket Width D = 1 1/2"

Operation Guide

Video

FAQ


Quantity
HCR-Thumb
HBR-200 R Buster Hand Holder
$566.66 $510.00 Online Sale!
HBR200

HB200 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 2" x 5/16" (not depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

10 of 5/32" (with a 1/8" spacer CMS1300)(CMS16 Step Type)

10 of 3/16" (with a 1/8" spacer CMS1300)(CMS19 Step Type)

Standard Holder

Length 10 1/2"

Width A = 3

Depth B = 1"

Pocket Height C = 5/16"

Pocket Width D = 2"

Operation Guide

Video

FAQ


Quantity
HCR-Thumb
HCR-100 R Buster Hand Holder
$384.20 $345.78 Online Sale!
HCR100

HC100 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1" x 3/8" (not depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

>

4 of 1/4" (CMS25 Step Type)

Standard Holder

Length 10 1/2"

Width A = 2"

Depth B = 1"

Pocket Height C = 3/8"

Pocket Width D = 1"

Operation Guide

Video

FAQ


Quantity
HCR-Thumb
HCR-200 R Buster Hand Holder
$580.98 $522.88 Online Sale!
HCR200

HC200 R Buster Hand Holder is designed for MAXIMUM safety and durability. The 10 1/2" long and oversized shank allows operator to place full hand safely on shank. The safety guard offers the operator hand protection, and the Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 2" x 3/8" (not depicted in photo).

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HR-3 Compression Spring, HR-4 Spring clip, and HR-5 Pin are used together to retain stamps in pocket (HR Spare Parts)

6. Safety Shield for extra hand protection HR-6-Guard (HR Spare Parts)

7. End Cap may be replaced when worn HR-7-END (HR Spare Parts)

8 of 1/4" (CMGS5 Step Type)

Standard Holder

Length 10 1/2"

Width A = 3"

Depth B = 1"

Pocket Height C = 3/8"

Pocket Width D = 2"

Operation Guide

Video

FAQ


Quantity

Accessories and Required tooling

CMS Rectangular Step Type

Rectangular step type for use with ALL HR R Buster Hand holders

Learn More

Type Box

Storage and organization for Holder and Type

Learn More

HR R Buster Series Spare Parts

Spring, Clip, Rod, Hand Guard and END piece used for all HR R Buster Hand Holders

Learn More
