Model 88 - 3 Ton Single Acting Air Impact Marker

CMT Model 88 8 Ton Air Impact Marker

Comprehensive Operation Guide with ordering and maintenance guidelines.

Technical Data Sheet
Drawings

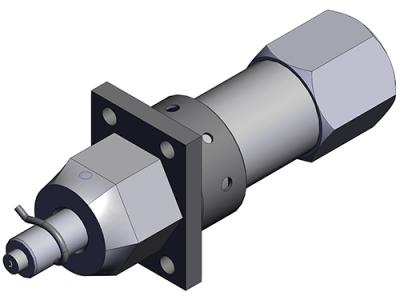

88SP-OB-EF 3-ton Air Impact Marker
$532.00 $479.00 Online Sale!
088SPOBEF

88SP-OB-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is 3/8" round.

1. Sun-Plate mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to hold (1) round CM8X insert.

5. Removable rear end cap for maintenance

6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Filter for air intake

Requires compressed air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 6000 Lbs. [26.7 kN] impact Force

Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm]

Weight – 8 Lbs. [1.36 Kg]

Operation Guide

Video

FAQ


Quantity

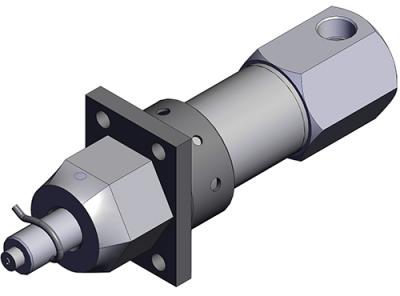

88SP-OB-SF 3-ton Air Impact Marker
$560.00 $504.00 Online Sale!
088SPOBSF

88-OB-SF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is 3/8" round.

1. Sub-Plate mount

2. Keyed rod to maintain stamp orientation

3. Air connection located on the side of the marker

4. Integrated stamp holder to hold (1) round CM8X insert.

5. Removable rear end cap for maintenance

6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Filter for air intake

Requires compressed air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 6000 Lbs. [26.7 kN] impact Force

Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm]

Weight – 8 Lbs. [1.36 Kg]

Operation Guide

Video

FAQ

MAX force 3 tons at 80 psi


Quantity

Accessories and Required tooling

CMG Rectangular Groove Type

Rectangular groove type for use with OA and OAS rod style of the 78, 88, 98, and 288 air impact markers

Learn More

CM8X Round Insert

1/2" round insert for use with 88 model.

Learn More

Retro-fit ValvePack

Complete air preparation for the models 88, 98, 78, and 288.

Learn More

Spare Parts

Complete technical data sheet on the CMT Model 88 3-ton single acting air impact marker.

Learn More
