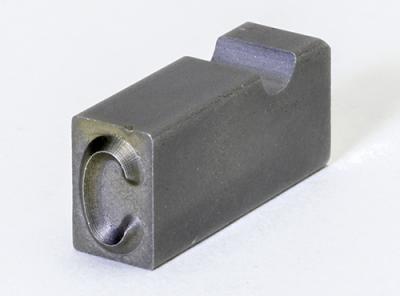

CMG06 1/16" [1.6mm] Character Standard Groove Type for industrial part marking. 1/16" x 1/4" x 7/8" [1.6mm x 6.3mm x 22.2mm] with standard groove. Please select the alpha-numeric character required when ordering.
1. Quality tool steel
2. Precision tolerances for marking applications
3. Standard Engraving depth
4. Standard font
5. Sharp Face Character
6. Standard heat treat for marking dies
Groove Stamps Technical Data Sheet
Over estimates of character size
CMG0609 1/16" [1.6mm] 0 through 9 figure set Standard Groove Type for industrial part marking. 1/16" x 1/4" x 7/8" [1.6mm x 6.3mm x 22.2mm] with standard groove.
CMG06AZ 1/16" [1.6mm] A through Z letter set Standard Groove Type for industrial part marking. 1/16" x 1/4" x 7/8" [1.6mm x 6.3mm x 22.2mm] with standard groove.
CMG0600 1/16" [1.6mm] Blank Spacer Standard Groove Type for industrial part marking. 1/16" x 1/4" x 7/8" [1.6mm x 6.3mm x 22.2mm] with standard groove.
3. Standard heat treat for marking dies
4. Length of spacer does not include engraved character height
CMG06DOT 1/16" [1.6mm] Dot Style Character Standard Groove Type for industrial part marking. 1/16" x 1/4" x 7/8" [1.6mm x 6.3mm x 22.2mm] with standard groove. Please select the alpha-numeric character required when ordering.
5. Dot Style Character
CMG06SL#### 1/16" [1.6mm] Character Special Length Groove Type for industrial part marking. 1/16" x 1/4" x 1" to 2" [1.6mm x 6.3mm x 24.2mm to 48.4mm] with standard groove. Please select the alpha-numeric character required when ordering.
