Spare Parts - 88 3 Ton Air Impact Marker

CMT Model 88 - Spare Parts

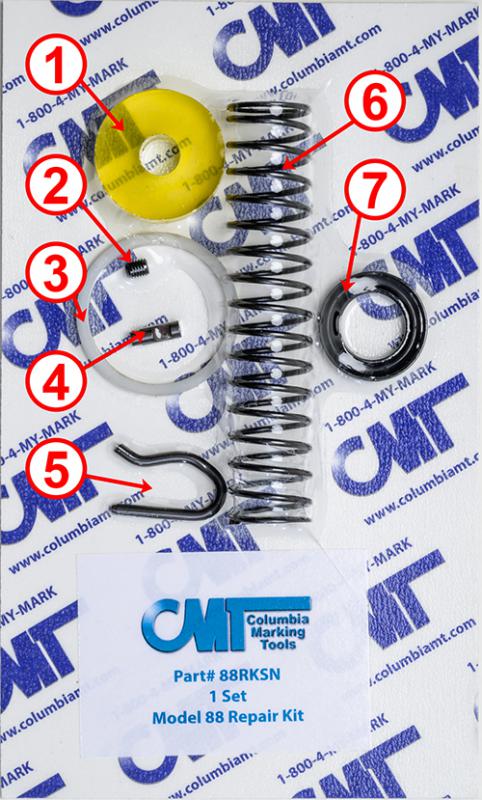

The Model 88 repair kit contains all the wearable parts for the air impact marker. These are also sold separately.

  1. 088-8A Bumper
  2. 088-12 Set screw
  3. 088-16 Rear Cap Washer
  4. 088-9 Key
  5. 088-2 Spring Clip
  6. 088-6 Return Spring
  7. 088-13 Piston Packing

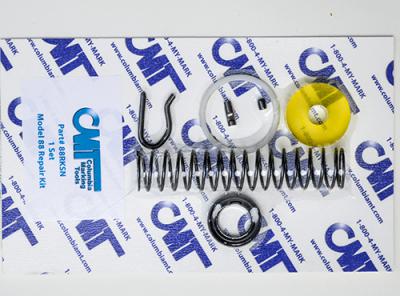

Model 88 Repair Kit 88RKSN

Technical Details

Parts

CMT Air Impact Marker Model 88 parts Breakdown
  1. Stamp - wearable part
  2. Rod/Stamp Holder
  3. Spring Clip - Retaining clip
  4. Keyway - maintains orientation of stamp(s)
  5. Front Nut - do not remove, will void warranty
  6. Rear end cap - remove for seal replacement
  7. Sleeve
  8. Muffler assembly - protect system from particulate
  9. Mounting Bracket - do not remove, will void warranty

Bill of Materials

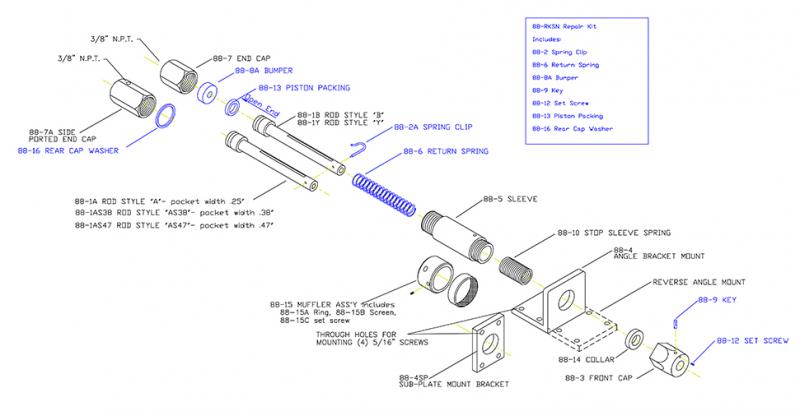

Model 88 Air Impact Marker Bill of Material

88-RKSN Model 88 Repair Kit
$52.00 $46.50 Online Sale!
088RKSN

The Model 88 repair kit contains all the wearable parts for the air impact marker. These are also sold separately.

  1. 88-8A Bumper
  2. 88-12 Set Screw
  3. 88-16 Rear Cap Washer
  4. 88-9 Key
  5. 88-2 Spring Clip
  6. 88-6 Return Spring
  7. 88-13 Piston Packing

Quantity
CLIP 88-2 Spring Clip
$3.33 $3.00 Online Sale!
08802 Quantity
Maintainence 88-6 Return spring
$4.44 $4.00 Online Sale!
08806 Quantity
Maintainence 88-8A Bumper
$6.67 $6.00 Online Sale!
08808A Quantity
Maintainence 88-9 Rod Key
$13.33 $12.00 Online Sale!
08809 Quantity
Maintainence 88-12 Set Screw
$3.33 $3.00 Online Sale!
08812 Quantity
Maintainence 88-13 Piston Packing
$12.22 $11.00 Online Sale!
08813 Quantity
Maintainence 88-16 Rear Cap Washer
$8.33 $7.50 Online Sale!
08816 Quantity
Maintainence 88-10 Stop Sleeve Spring
$19.00 $17.00 Online Sale!
08810 Quantity
Maintainence 88-15 Muffler
$50.00 $45.00 Online Sale!
08815 Quantity
Maintainence 88-1A Rod Style "A"
$325.00 $275.00 Online Sale!
08801A Quantity
Maintainence 88-1B Rod Style "B"
$277.80 $250.00 Online Sale!
08801B Quantity
Maintainence 88-8 Stop bumper
$6.67 $6.00 Online Sale!
08808 Quantity

Accessories and Required tooling

CMG Rectangular Groove Type

Rectangular groove type for use with OA and OAS rod style of the 78, 88, 98, and 288 air impact markers

Learn More

CM8X Round Insert

1/2" round insert for use with 88 model.

Learn More

Retro-fit ValvePack

Complete air preparation for the models 88, 98, 78, and 288.

Learn More

Operation Guide

Complete technical data sheet on the CMT Model 88 3-ton single acting air impact marker.

Learn More
