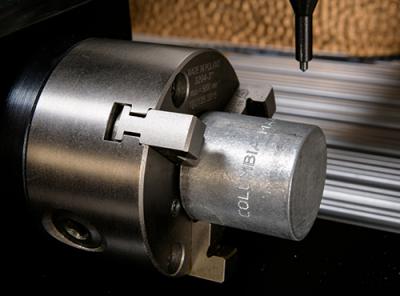

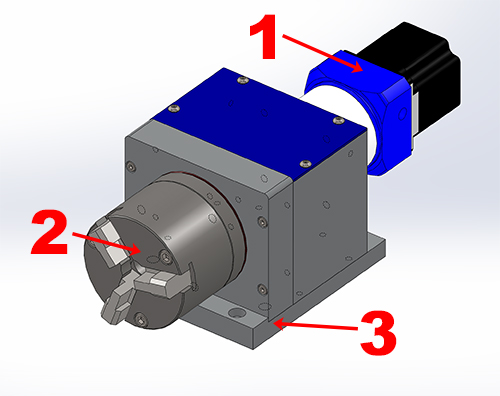

HANDYANDYROT The Handy Andy Rotator is used to mark the OD of rounds parts. Must be purchased with HANDY ANDY X for complete setup and testing.
1. Oversized motor
2. 80mm (3") Chuck
3. Mounting plate and T nuts to mount on Stand
4. Auxillary Cable connection, to connect to the back of the Handy Andy Head for motor controls
Video
FAQ

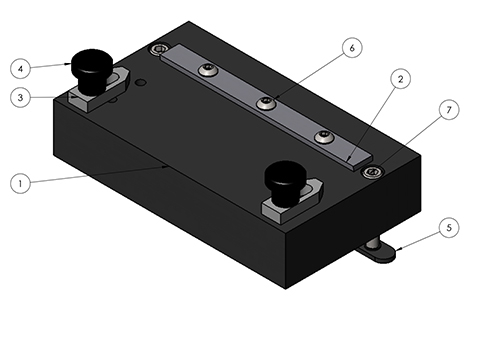

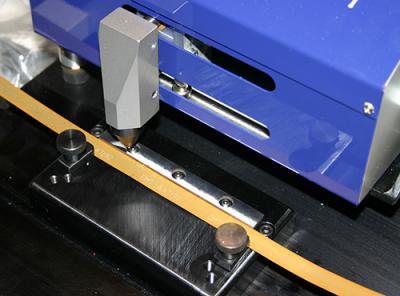

PLF10-AA7692 Band Fixture for HandAndy X is used to mark metal bands. Will hold up to 1" wide bands for quick and easy marking.
. Fixture base plate
2. Back Stop Rail
3. Clamp finger (2)
4. Thumb Screw (2)
5. 1/4-20 T Nuts (2) - to mount to bench top stand
6. Button Head Cap screw (3)
7. SHC Screw (2)

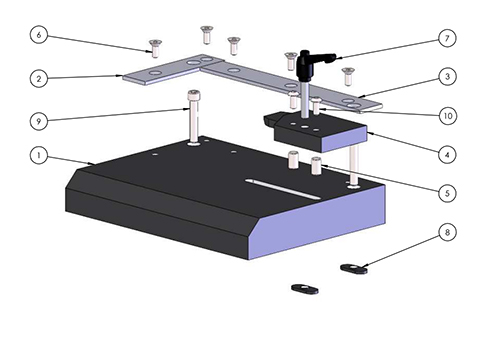

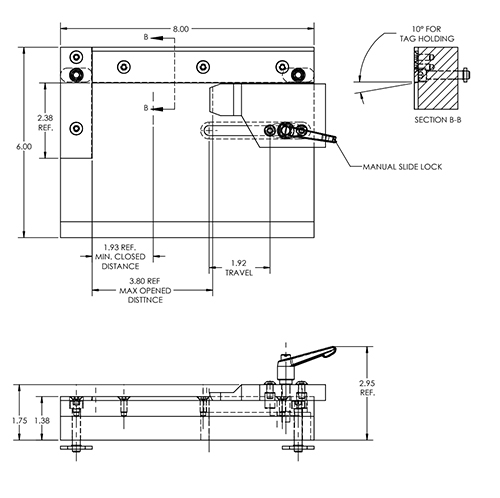

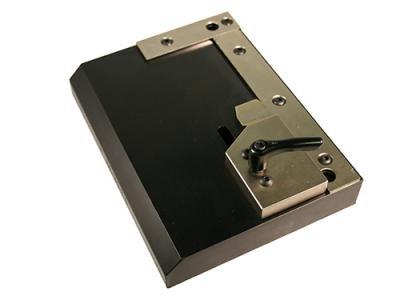

PLF10-AE3525 Adjustable Tag Fixture for HandAndy X is used to mark metal tags of vaying sizes. Will hold tags up to 3.80".
1. Fixture base plate
2. Horizontal Stop
3. Wedge Back Stop
4. Offset Tag Clamp
5. ASME (2)
6. SHC screw (5)
7. Handle for quick = not tooling required adjustment loading
8. Econ T Nut for mounting to benchtop stand (2)
9. 1/4-20 1.38" Long SHC Screw (2)
10. 10-32 BHCS (2)

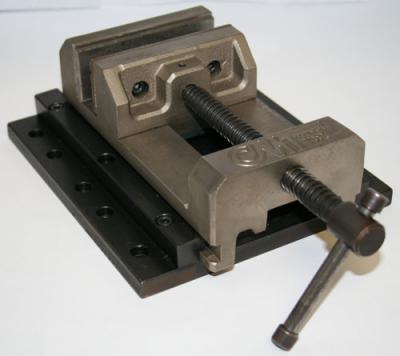

PRG-VISE Vise for HandAndy X is used to wide range of parts. Quick easy setup for a wide range of parts. Adjustable vise with master fixture plate to position on programmable marking systems standard CMT bench top frames.
4" Width opening
4" Across jaws
1 9/16" depth
Also included: t-slot mounting boltsy

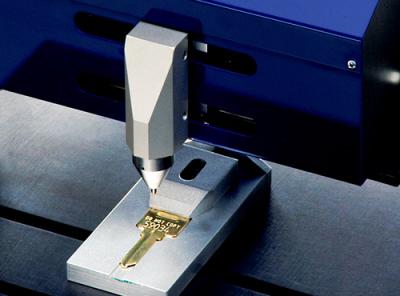

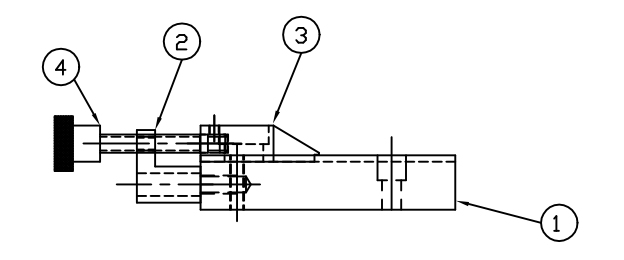

PRG-KEY Key Fixture for HandAndy X is used to mark metal key. Custom designed to your key style. Sample required for runoff and test.
1. Fixture base plate with special engraved depression for key
1. Clamp
2. Clamp Fixture
3. Key Clamp
4. Knurled nob

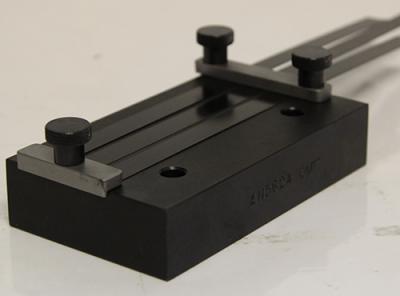

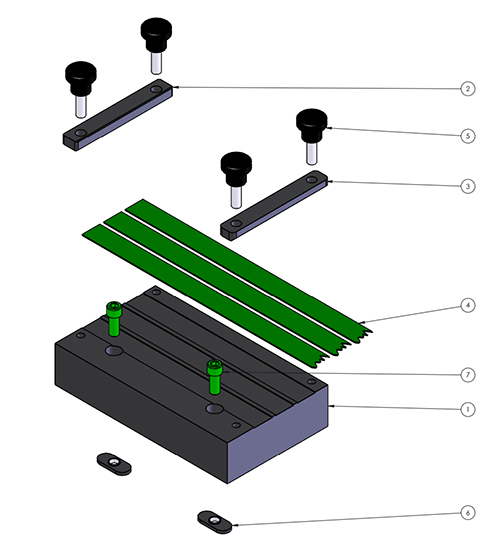

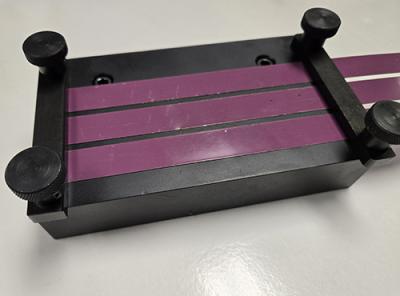

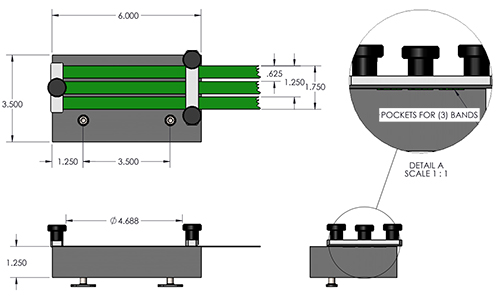

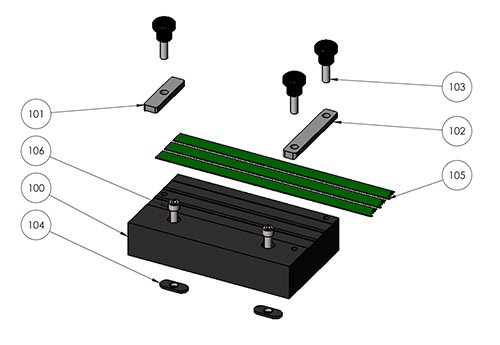

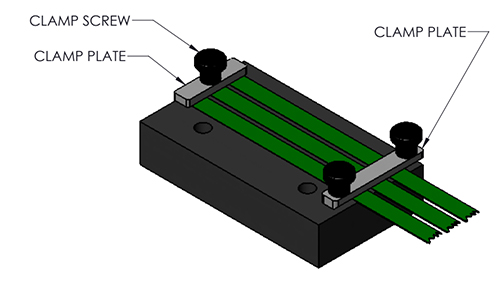

PLF10-AN5624 3 Band Fixture for HandAndy X is used to mark 3 band in marking operation. Will hold bands up to .625" or 5/8" wide.
100. Fixture base plate
101. Clamp Finger
102. Clamp Finger
103. Thumb Screw 1/4-20 (3)
104. 1/4-20 Tap T nut for mounting to bench top stand
105. Sample Band - just for display, not included in fixture package
106. SHC Screw (2)
Part Locating Fixture - Handy Andy X Simple Design a) Designed for customer provided print - must have CMT reference number to order. Email print with marking location noted to quotes@columbiamt.com b) Approval drawing for review of fixture design c) Fixture to be used in CMT Handy Andy X dot-peen marking machine d) Fixture to have positive part stop to provided exact repeatable part marking e) Easy Clamping devices designed to perfectly fit part and be quick and efficient for loading and unloading f) Heat treated and black oxide finished to assure longevity g) Part locating fixture to include all required component to install on Handy Andy X h) Order to begin with receipt of 3-6 parts. Parts to be used both in the design and test of the fixture i) CMT to provide photos of sample marked parts upon completion of fixture and machine
