Model 78 Double Acting Air Impact Marker

CMT Model 78 Mite-E-Mark Air Impact Marker

Comprehensive Operation Guide with ordering and maintenance guidelines.

Technical Data Sheet
Drawings

78-FK-OA-20-E-NL Mite-E-Mark
$1,161.00 $1,045.00 Online Sale!
078FKOA20ENL

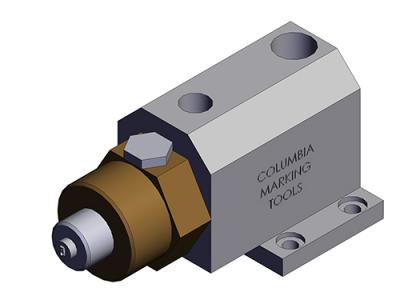

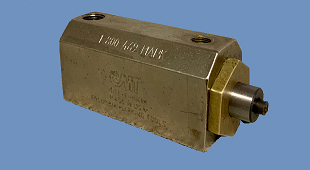

78-FK-OA-20-E-NL Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 2,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 2" [25.4mm]

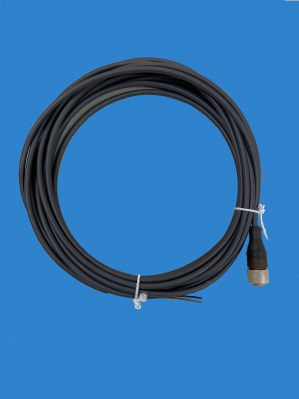

8. Return position sensor - 24VDC Euroconnector

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 2500 Lbs. [11.12 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity
78-FK-OA-20-NL Mite-E-Mark
$772.00 $695.00 Online Sale!
078FKOA20NL

78-FK-OA-20-NL Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 2,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 2" [25.4mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 2500 Lbs. [11.12 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity
78-FK-OB-10 Mite-E-Mark
$606.00 $545.00 Online Sale!
078FKOB10

78-FK-OB-10 Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is 1/4" diameter.

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder (1) CM7X round insert CM7X

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

Requires compressed lubricated air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity
78-FK-OB-10-E Mite-E-Mark
$994.00 $895.00 Online Sale!
078FKOB10E

78-FK-OB-10-E Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is 1/4" diameter.

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder (1) CM7X round insert CM7X

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed lubricated air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity
78-FK-OB-10-E-NL Mite-E-Mark
$1,050.00 $945.00 Online Sale!
078FKOB10ENL

78-FK-OB-10-E-NL Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is 1/4" diameter.

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder (1) CM7X round insert CM7X

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity
78-FK-OB-10-NL Mite-E-Mark
$661.00 $595.00 Online Sale!
078FKOB10NL

78-FK-OB-10-NL Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is 1/4" diameter.

1. Foot mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder (1) CM7X round insert CM7X

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity

Accessories and Required tooling

CMF Rectangular Groove Type

Rectangular flat type for use in the 78 - OA rod.

Learn More

CM7X Round Insert

1/4" round insert for use with 75 - OB rod.

Learn More

Retro-fit Valve Pack

Complete air preparation for the models 88, 98, 78, and 288.

Learn More

Spare parts

Replacement clips, repair kit, individual spring and seals.

Learn More
