Model 78 Double Acting Air Impact Marker

CMT Model 78 Mite-E-Mark Air Impact Marker

Comprehensive Operation Guide with ordering and maintenance guidelines.

Technical Data Sheet
Drawings

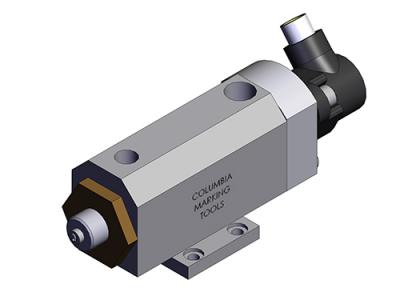

78-FN-OB-20-E-NL Mite-E-Mark
$1,050.00 $945.00 Online Sale!
078FNOB20ENL

78-FN-OB-20-NL Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 2,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is 1/4" diameter.

1. Foot mount

2. Non-Keyed rod, compact solution. Stamp orientation varies.

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder (1) CM7X round insert CM7X

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 2" [50.8mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 2500 Lbs. [11.12 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity

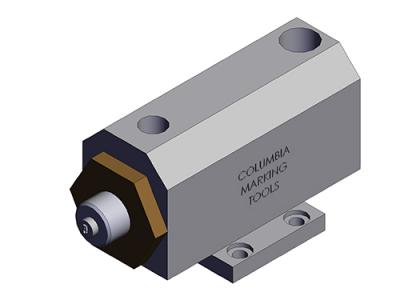

78-FN-OB-20-NL Mite-E-Mark
$661.00 $595.00 Online Sale!
078FNOB20NL

78-FN-OB-20 Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 2,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is 1/4" diameter.

1. Foot mount

2. Non-Keyed rod, compact solution. Stamp orientation varies.

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder (1) CM7X round insert CM7X

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 2" [50.8mm]

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 2500 Lbs. [11.12 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity

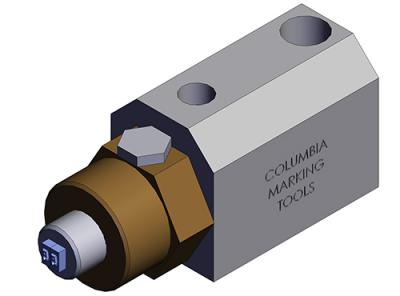

78-RK-OA-10 Mite-E-Mark
$661.00 $595.00 Online Sale!
078RKOA10

78-RK-OA-10 Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Rear mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

Requires compressed lubricated air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity
78-RK-OA-10-NL Mite-E-Mark
$717.00 $645.00 Online Sale!
078RKOA10NL

78-RK-OA-10-NL Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 1,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Rear mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 1" [25.4mm]

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 1500 Lbs. [6.67 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity

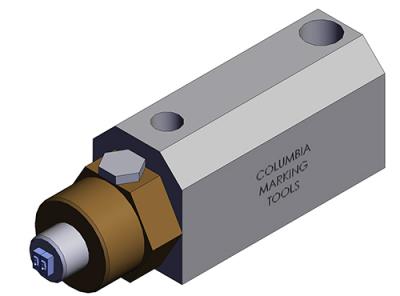

78-RK-OA-20 Mite-E-Mark
$717.00 $645.00 Online Sale!
078RKOA20

78-RK-OA-20 Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 2,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Rear mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 2" [25.4mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed lubricated air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 2500 Lbs. [11.12 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity
78-RK-OA-20-NL Mite-E-Mark
$772.00 $661.00 Online Sale!
078RKOA20NL

78-RK-OA-20-NL Mite-E-Mark Air impact marker is a double acting marking tool. The model 78 is a compact and rugged air powered marking unit. The amazing 2,500 lbs of instantaneous impact force will mark QC and acceptance codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Rear mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMF06 or (2) 1/8" characters CMF13

5. Removable front hex for maintenance

6. Set screw holds stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Approach stroke 2" [25.4mm]

8. Return position sensor - 24VDC Euroconnector

Requires compressed DRY air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 2500 Lbs. [11.12 kN] impact Force

Dimensions Smaller than – 7” x 2” x 2.5” [203.2mm x 50.8mm x 63.5mm] CAD Files

Weight – 4 Lbs. [1.81 Kg]

Operation Guide

Video

FAQ


Quantity
