Model 288 3 Ton Double Acting Air Impact Marker

CMT Model 288 8 Ton Air Impact Marker

Comprehensive Operation Guide with ordering and maintenance guidelines.

Technical Data Sheet
Drawings

288-OA-25-D 3-ton Double Acting Air Impact Marker
$1,100.00 $990.00 Online Sale!
288OA25D
Mounting Style
Quantity
288-OA-25-E 3-ton Double Acting Air Impact Marker
$1,000.00
288OA25E

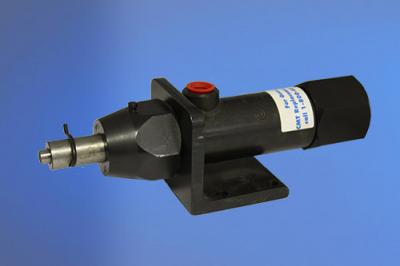

288-OA-25-E 3-ton Air impact marker is double acting with spring return action. The model 288 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is square 1/4" x 1/4".

1. Standard angle bracket mount

2. Keyed rod to maintain stamp orientation

3. Air connection located at the back of the marker

4. Integrated stamp holder to holder either (4) 1/16" characters CMG06 or (2) 1/8" characters CMG13

5. Removable rear end cap for maintenance

6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra)

7. Filter for air intake

Requires compressed air, connection 3/8" NPT

Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba]

Max Pressure 6000 Lbs [26.7 kN] impact Force

Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm]

Weight – 8 Lbs. [1.36 Kg]

Operation Guide

Video

FAQ



Mounting Options
Quantity
288-OB-25-D 3-ton Double Acting Air Impact Marker
$1,039.50 $935.55 Online Sale!
288OB25D

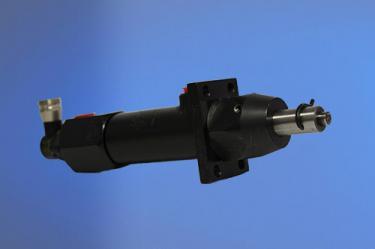

288-OB-25-D double acting air impact marker featuring:

Air forward, air return

Standard angle bracket mounting

B-style rod to fit (1) CM8X insert (OB)

Keyed, non-rotating rod

2.5-inch max stroke (25)

MAX force 3 tons at 80 psi

Side ported end cap

Return Turck cylindicator with 24v, DC, Euro connector and PNP sourcing


Quantity
288-OB-25-D-NL 3-ton Double Acting Air Impact Marker
$1,280.13 $1,152.11 Online Sale!
288OB25DNL

288-OB-25-D-NL double acting air impact marker featuring:

Air forward, air return

Standard angle bracket mounting

B style rod to fit (1) CM8X insert (OB)

Keyed, non-rotating rod

2.5-inch max stroke (25)

MAX force 3 tons at 80 psi

Side ported end cap

Return cylindicator (Turck brand) with 24v, DC, Euro connector (PNP sourcing)

Non-lubed air, low maintenance option


Quantity

Accessories and Required tooling

CMG Rectangular Groove Type

Rectangular groove type for use with models 88-OA, 288-OA, 75ATOA, 85ATOA, 95ATOA, and 95N style holders

Learn More

CM8X Round Insert

3/8" round insert for use with 88-OB, 288-0B, 75ATOB, 85ATOB, and 095OB models.

Learn More

Retro-Fit Valve Pack

Complete air preparation for the models 78, 88, 98 and 288.

Learn More

Spare parts

Replacement clips, repair kit, individual spring and seals.

Learn More
