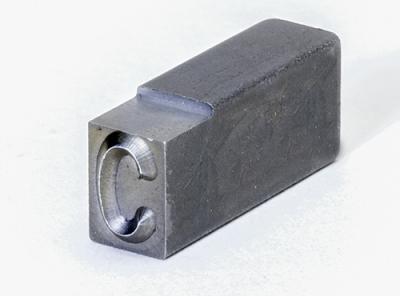

CMS13 1/8" [3.2mm] Character Standard Step Type for industrial part marking. 1/8" x 1/4" x 7/8" [3.2mm x 6.3mm x 22.2mm] with standard step. Please select the alpha-numeric character required when ordering.
1. Quality tool steel
2. Precision tolerances for marking applications
3. Standard Engraving depth
4. Standard font
5. Sharp Face Character
6. Standard heat treat for marking dies
Step Stamps Technical Data Sheet
Over estimates of character size
CMS1309 1/8" [3.2mm] 0 through 9 figure set Standard Step Type for industrial part marking. 1/8" x 1/4" x 7/8" [3.2mm x 6.3mm x 22.2mm] with standard step.
CMS13AZ 1/8" [3.2mm] A through Z letter set Standard Step Type for industrial part marking. 1/8" x 1/4" x 7/8" [3.2mm x 6.3mm x 22.2mm] with standard step.
CMS13 1/8" [3.2mm] Dot Style Character Standard Step Type for industrial part marking. 1/8" x 1/4" x 7/8" [3.2mm x 6.3mm x 22.2mm] with standard step. Please select the alpha-numeric character required when ordering.
5. Dot Style Character
CMS1309 1/8" [3.2mm] 0 through 9 figure set Dot Style Standard Step Type for industrial part marking. 1/8" x 1/4" x 7/8" [3.2mm x 6.3mm x 22.2mm] with standard step.
CMS13AZ 1/8" [3.2mm] A through Z letter set Dot Style Standard Step Type for industrial part marking. 1/8" x 1/4" x 7/8" [3.2mm x 6.3mm x 22.2mm] with standard step.
CMS13PUN 1/8" [3.2mm] Punctuation Standard Step Type for industrial part marking. 1/8" x 1/4" x 7/8" [3.2mm x 6.3mm x 22.2mm] with standard step. Please select the punctuation required when ordering.
Punctuation List
CMS13SYM 1/8" [3.2mm] Symbol Standard Step Type for industrial part marking. 1/8" x 1/4" x 7/8" [3.2mm x 6.3mm x 22.2mm] with standard step. Please select the symbol number required when ordering.
Symbol List
CMS1300 1/8" [3.2mm] Blank Spacer Standard Step Type for industrial part marking. 1/8" x 1/4" x 7/8" [3.2mm x 6.3mm x 22.2mm] with standard step.
3. Length of spacer does not include engraved character height
4. Standard heat treat for marking dies
